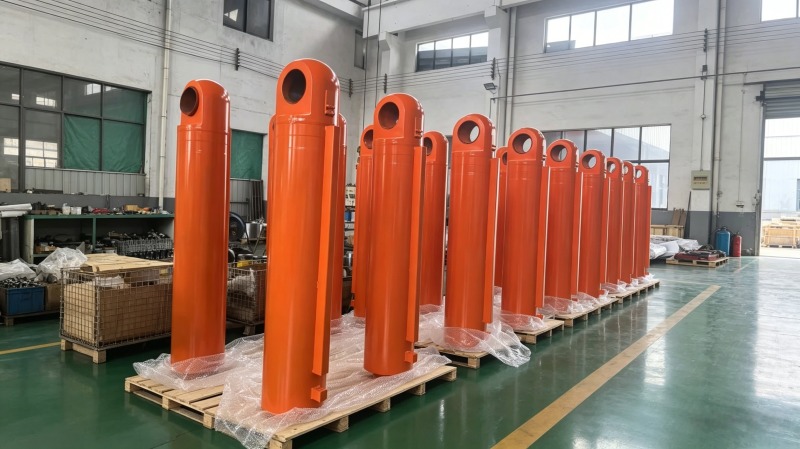

This article examines hydraulic cylinder technology through standards, testing, and intelligent evolution. It outlines key domestic (GB/T 15622, JB/T 10205) and international (ISO 6020/6022, ISO 10100) standards governing design, interchangeability, and acceptance. Mandatory validation tests are detailed, including proof pressure testing, internal leakage measurement, low-pressure breakaway assessment, and endurance/impulse fatigue testing. The article further explores the intelligent transformation of cylinders through embedded magnetostrictive displacement sensing, combined pressure/temperature MEMS sensors, and cloud-based digital twin analytics enabling predictive maintenance and health diagnostics. It concludes that future hydraulic actuators will function as self-sensing intelligent terminals within the IIoT ecosystem.

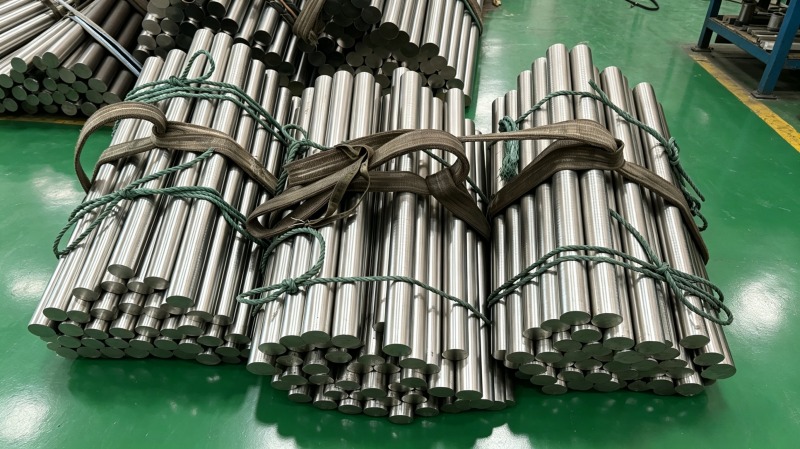

This article examines the guidance and sealing technologies essential for precision piston rod performance. Four guidance methods are analyzed: plain sliding guides for robustness, rolling element guides for low friction and high precision, external linear rail guides for ultimate rigidity, and hydrostatic guides for friction-free motion. The guidance system's role in stabilizing motion, protecting seals, and minimizing wear is detailed. Sealing mechanisms are explored, covering material selection for PU, NBR, and PTFE seals, and the design principles of stuffing box seals with appropriate clearance gaps. The benefits of roller burnishing in creating micro-elastic surface conformity to improve contact uniformity and prevent spalling are explained. Together, these systems ensure precise linear motion and contamination exclusion.

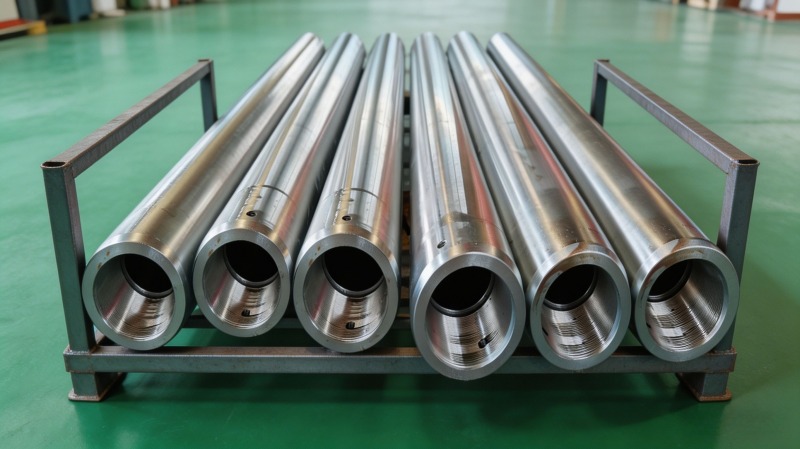

This article examines the synergistic strengthening mechanism of honing and roller burnishing. It details the honing process as a floating, self-centering abrasive operation capable of correcting roundness, taper, and waviness errors while generating a functional cross-hatch pattern for oil retention and lubrication. The roller burnishing process is analyzed as a chipless cold-working technique that induces beneficial residual compressive stress and a dense fibrous microstructure, enhancing fatigue life and avoiding the thermal damage of grinding burn. The critical distinction between honed tubes—which correct geometry for sealing—and polished tubes—which only improve visual finish—is clarified. A special process extension for high-precision internally threaded honed tubes is also introduced.

This article examines material selection and surface engineering for hydraulic cylinder barrels and piston rods. It details barrel materials from carbon steels (C45) to stainless steels (316L), and the micro-topography generated by honing (cross-hatch for oil retention) versus roller burnishing (compressive stress for fatigue resistance). For piston rods, it analyzes base steels (C45, 40Cr), the duplex hard chrome plating process including mandatory hydrogen de-embrittlement, and advanced coating solutions such as HVOF tungsten carbide (WC-CoCr) and laser-clad stainless steel for extreme marine environments. Synergistic material choices for guide bushings and end caps are also addressed. The article emphasizes that long-term cylinder reliability is a function of integrated materials science and process control.

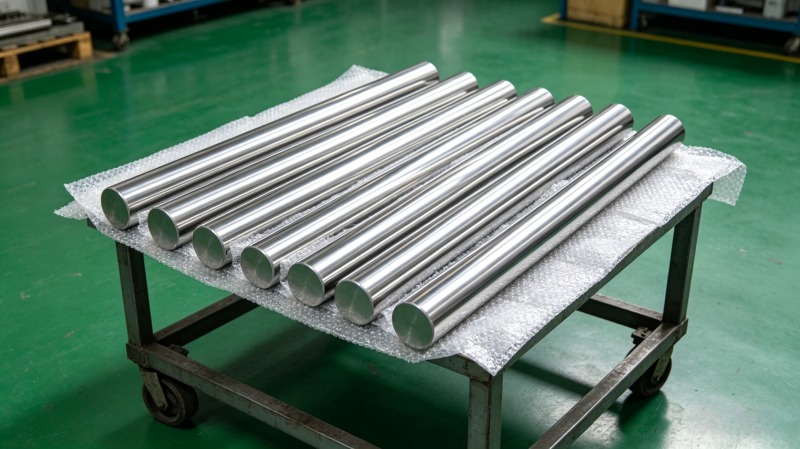

This article analyzes the structural design of precision piston rods. It covers the rationale behind the cylindrical form for concentricity and isotropic bending stiffness, and examines piston connection methods—threaded, welded, and keyed—each suited to specific load conditions. The critical role of straightness control and annular groove design for seal retention and wear band positioning is detailed. Mandatory design considerations are outlined: load spectrum analysis, column buckling stability verification, system pressure matching, standards compliance, and manufacturing process feasibility. The article emphasizes that piston rod design is a systematic engineering discipline integrating geometry, material mechanics, and process planning.

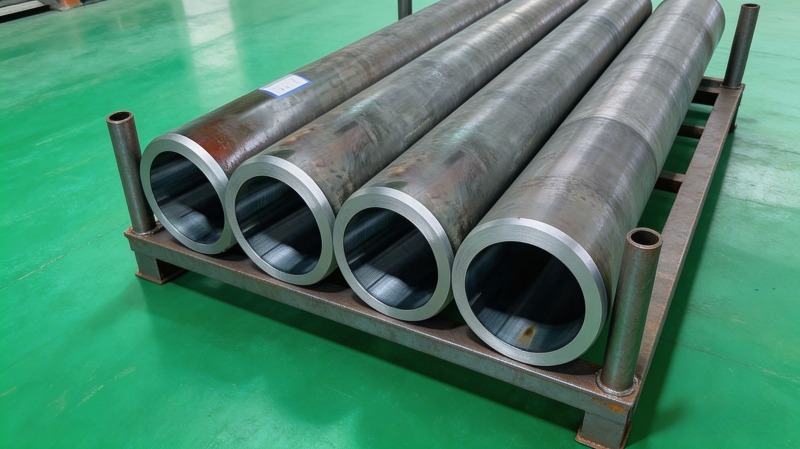

This article details the complete manufacturing process for high-precision honed seamless tubes. The six core stages are: strict raw material selection for metallurgical foundation; hot forging/piercing for hollow shell with refined grains; precision deep-hole boring for uniform wall thickness; rigorous quenching and tempering for optimal strength, ductility and toughness via tempered sorbite; multi-pass cold drawing for precise sizing and surface hardening; and high-precision honing with external finishing to correct geometric errors and generate the functional cross-hatch surface texture. The article also highlights critical supporting processes: pickling and phosphating for cold-drawing lubrication, and on-line eddy current or ultrasonic NDT as the final quality gate, ensuring every tube is structurally sound and defect-free.

This article systematically categorizes hydraulic cylinder mounting methods into four fundamental types—flange, trunnion, clevis (eye-end), and foot/tie-rod—and analyzes their mechanical characteristics and application boundaries. It details the critical role of perpendicularity in flange mounts, the side-load self-aligning capability of trunnion pivots, the double-pendulum articulation freedom of clevis mounts requiring spherical bearings, and the thermal expansion constraints of rigid foot mounts. The article further elucidates how improper mounting initiates a cascade of performance degradation: increased frictional losses, induction of low-speed stick-slip motion, and accelerated seal failure. A disciplined engineering approach to mounting selection is advocated for ensuring long-term cylinder reliability.

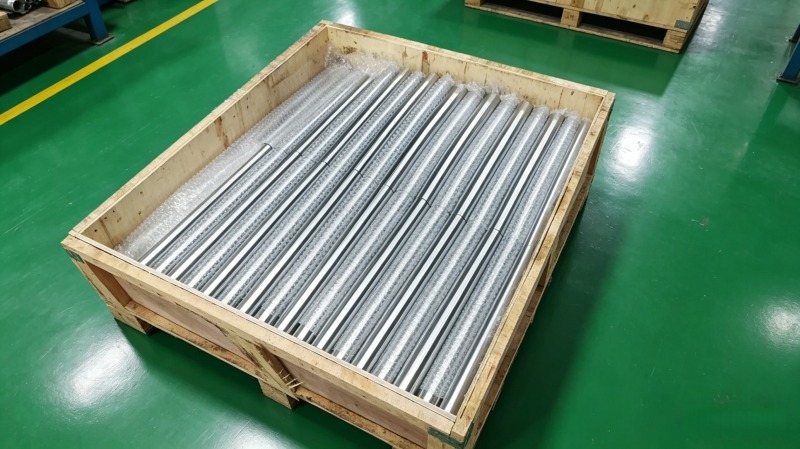

This article provides an in-depth analysis of the working principle of precision piston rods from mechanics, kinematics, and tribology perspectives. It describes the three-phase working process—extension, hold, and retraction—and details axial force transmission with strength criteria, column buckling stability, and alternating fatigue loading enhanced by roller burnishing. Kinematic equations for displacement, velocity, and acceleration in crank mechanisms are presented, along with side-force guidance. Tribological behavior including lubrication regimes, friction coefficients for various material pairings, and wear mechanisms is examined. Precision requirements derived from the principle are linked to manufacturing tolerances for diameter, straightness, and surface roughness. The translation of theoretical principles into engineering realization through material selection, heat treatment, grinding, and surface treatment is summarized.

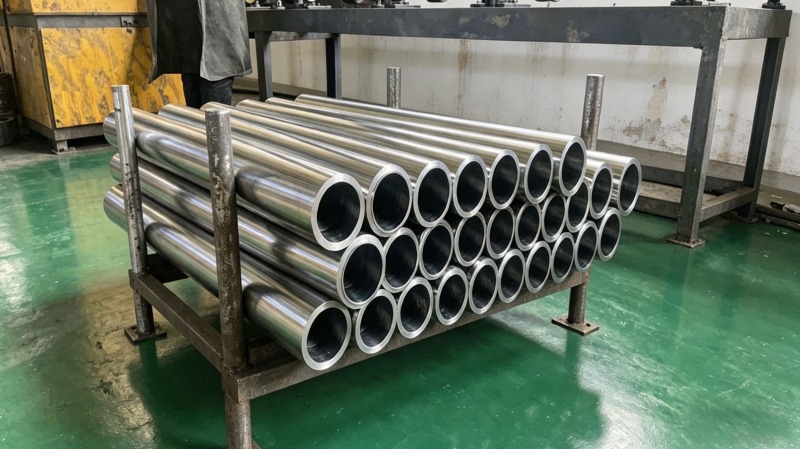

This guide details how to identify and select high-quality honed seamless tubes for hydraulic cylinders. Five critical parameters are explained: ID tolerance for consistent seal compression, roundness to prevent leakage and uneven wear, straightness to avoid side-loading, surface roughness for optimal lubrication, and cross-hatch angle for oil retention. Three practical field inspection methods are described: directed light visual inspection to detect chatter and scoring, tactile gloved-hand inspection for bore smoothness and end deformation, and an oil film spread test to verify surface cleanliness. Common selection pitfalls are addressed, including the misconception that a mirror finish is ideal, neglecting wall thickness tolerances, and overlooking tube straightness. Proper selection and inspection are emphasized as critical for hydraulic system reliability.

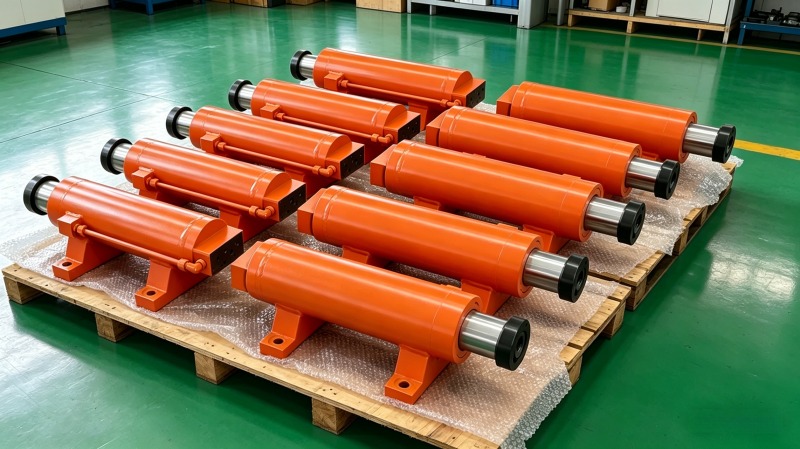

This article analyzes the core differences among three fluid power actuators: hydraulic cylinders, pneumatic cylinders, and hydraulic motors. It first contrasts hydraulic and pneumatic cylinders, highlighting how oil's virtual incompressibility delivers superior load rigidity (no stick-slip) and up to 30x greater force density compared to low-pressure air systems. Second, it distinguishes hydraulic cylinders from hydraulic motors by their respective linear versus continuous rotary outputs, explaining the inefficiency of mechanical motion conversion. A structured selection decision tree is provided, guiding engineers based on motion form (linear vs. rotary), load magnitude (heavy vs. light), and environmental constraints (oil-free vs. rugged sealed), enabling optimal actuator matching for diverse industrial applications.
