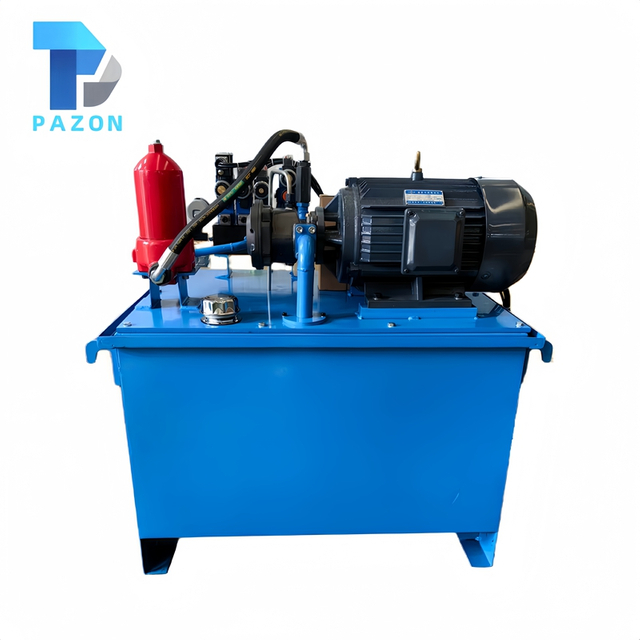

​This 200T Heavy-Duty Press Hydraulic Power Unit is a compact, high-performance system engineered to deliver precise and reliable hydraulic power for demanding 200-ton press applications. Designed around a robust 25 MPa pressure framework, it integrates advanced proportional control technology to ensure smooth operation, accurate force control, and enhanced process repeatability in heavy-duty forming, stamping, or molding operations.

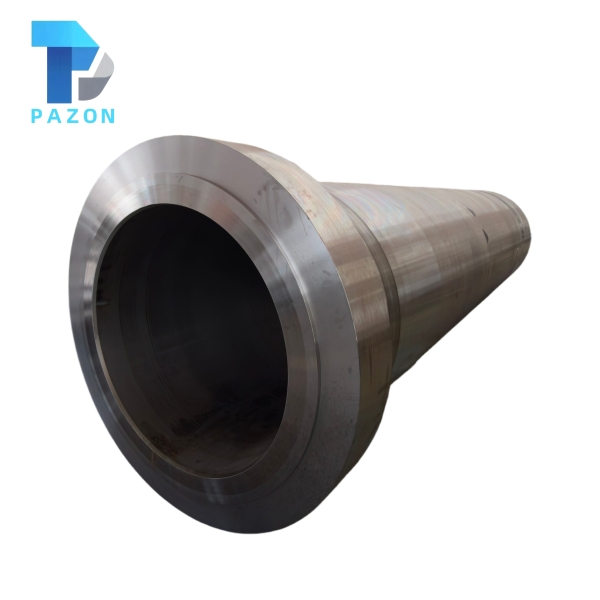

Cylinder Barrel Blanks are pre-machined seamless tubes with the bore already honed or skived & roller burnished. Cut to exact length and ready for final machining, they eliminate in-house bore finishing and shorten production cycles. Available in carbon, alloy, and stainless steel, with various heat treatments. ID up to 3000 mm, straightness ≤0.3 mm/m, bore roughness Ra ≤0.2 μm. Standard tolerances H7/H8. Ideal for streamlining hydraulic cylinder manufacturing. Custom dimensions, end preparations, and packaging offered.

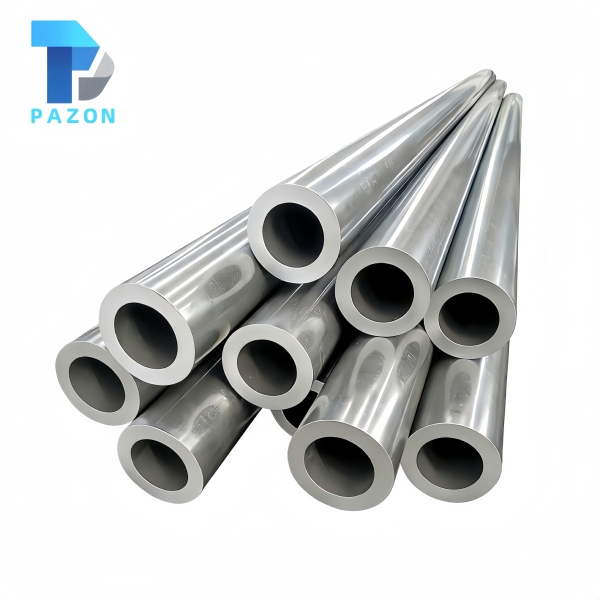

Nickel or zinc-plated precision tube with a honed inner bore (Ra ≤0.2 μm, H7/H8). External plating provides targeted corrosion protection — nickel for enhanced resistance and finish, zinc for economical sacrificial protection. Base tube materials include carbon, alloy, and stainless steel, available in various heat-treated conditions. Plating thickness is fully customizable to application needs. Ideal for hydraulic cylinders in moderately corrosive or general industrial environments. Custom sizes, tolerances, and end finishes available on request.

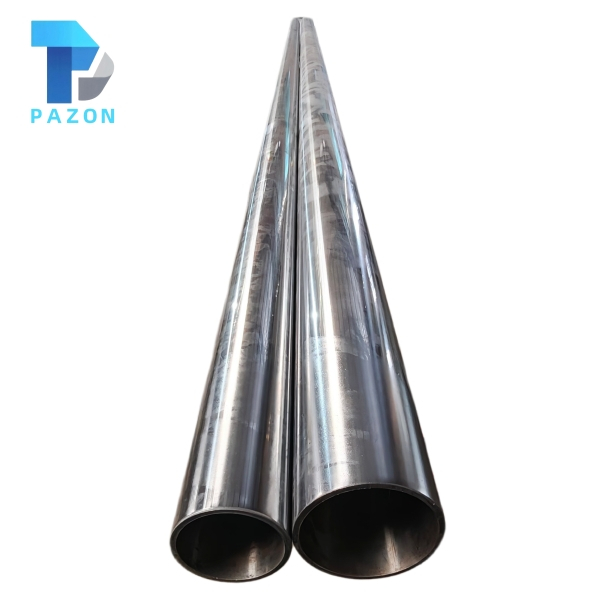

Chrome-plated honed tube for hydraulic cylinder barrels, combining a precision-honed bore (Ra ≤0.2 μm, H7/H8) with a hard chrome-plated exterior. Chrome layer thickness standard 20–40 μm (customizable to >100 μm), hardness 850–1150 HV, and 96-hour salt spray rating 9 per ISO 10289. Base tube materials include carbon, alloy, and stainless steel in various heat-treated conditions. Offers excellent internal sealing and external corrosion resistance. Ideal for marine, offshore, and heavy-duty cylinders. Custom dimensions and tests available.

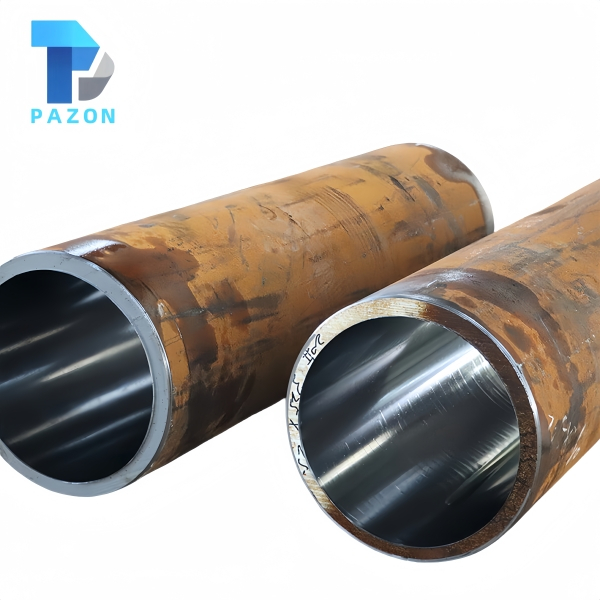

Skived & Roller Burnished (SRB) precision tube with ID up to 3000 mm, straightness ≤0.2 mm/m, and inner surface roughness Ra 0.1–0.2 μm. Manufactured in a single-pass process that combines skiving and burnishing for superior efficiency. The burnished bore features a work-hardened surface with enhanced wear resistance. Available in carbon, alloy, and stainless steel grades with various heat treatments. Ideal for long-stroke hydraulic cylinders requiring high precision and cost-effective production. Custom dimensions and finishes on request.

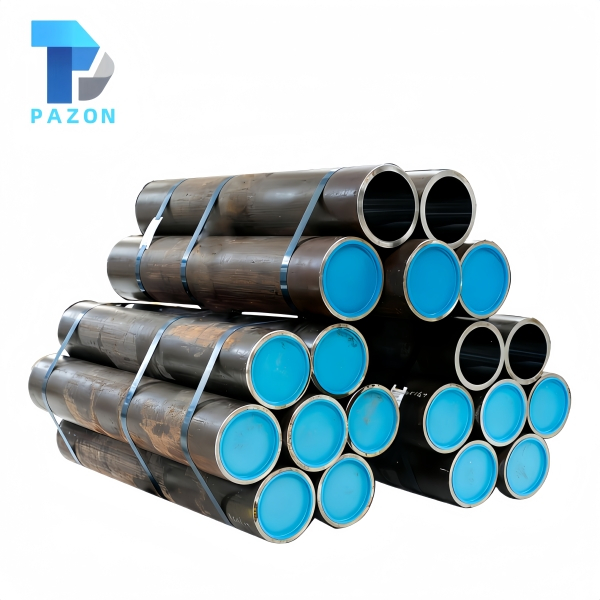

Precision honed tube with ID up to 3000 mm, achieving straightness ≤0.3 mm/m and inner surface roughness Ra ≤0.2 μm. Standard ID tolerances H7/H8, with H6 available on request. Base tubes in carbon, alloy, or stainless steel, offered in various heat treatment conditions. External surface finishes include zinc and nickel plating. Ideal for high-performance hydraulic cylinders, ensuring low friction and long seal life. Custom sizes, tolerances, and packaging offered.

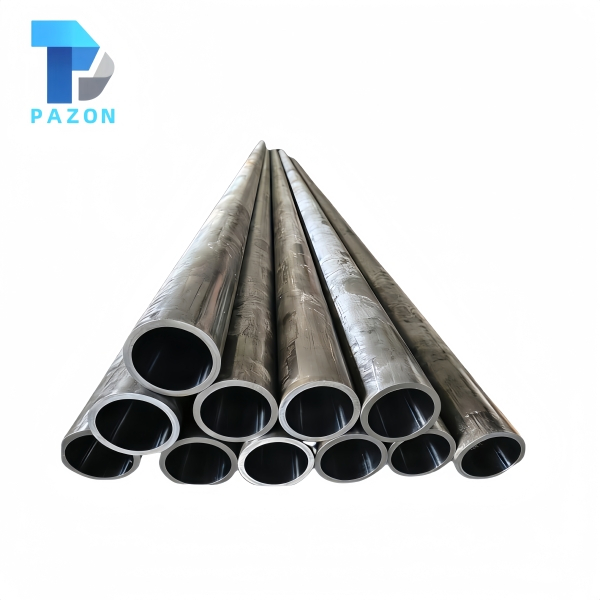

Cold-drawn precision seamless tube with inner diameter up to 3000 mm and straightness ≤0.5 mm/m. Offering IT7–IT10 tolerances, ID to H7–H10, and inner surface roughness Ra ≤0.4 μm. Available in carbon, alloy, and stainless steels with flexible heat treatment and surface finishing options. Ideal for hydraulic cylinder barrels and precision machinery. Custom dimensions, tolerances, and packaging on request.

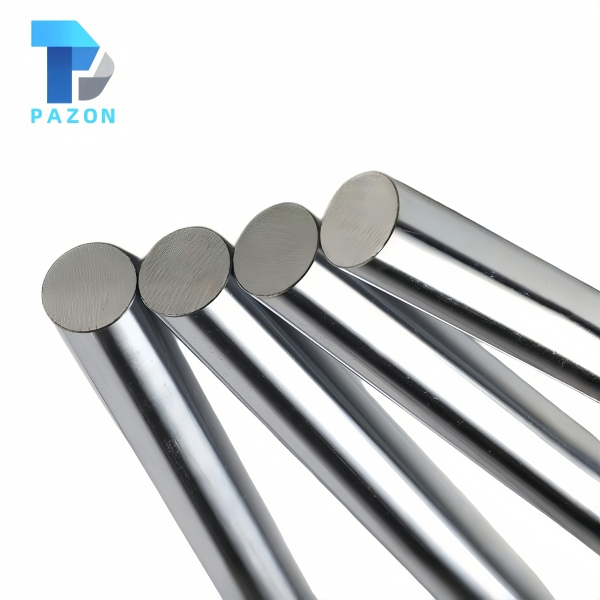

Stainless Steel Piston Rods are precision-ground and available with finished end machining, offering inherent corrosion resistance without plating. Available in diameters φ6–200 mm and lengths up to 6000 mm, they meet ISO f7/h7 tolerances with Ra≤0.2 μm finish. Multiple grades—304, 316, 2205, 17-4PH—can be supplied to match strength and environmental needs. Ideal for food, marine, medical and chemical hydraulic applications, with full customization of dimensions, tolerances, material, heat treatment and end machining supported.

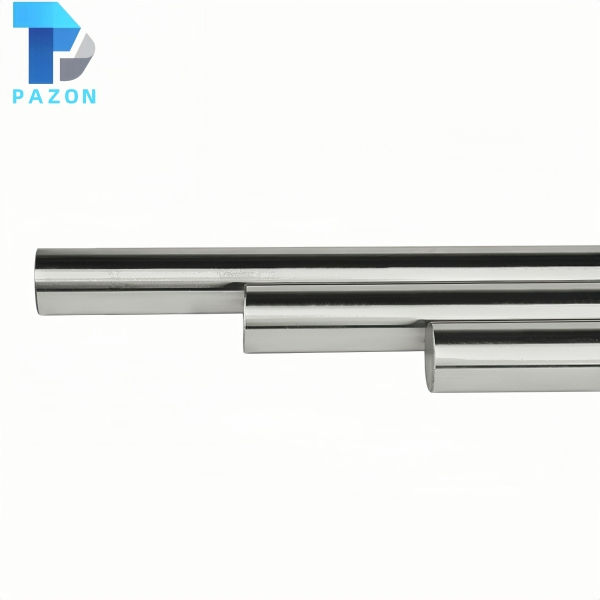

Stainless Steel Hardened & Tempered Rods are heat-treated to 28–40 HRC for enhanced strength and wear resistance, while maintaining intrinsic corrosion protection. Available in diameters φ6–200 mm, up to 6000 mm long, with ISO f7/h7 tolerance and Ra≤0.2 μm ground finish. Suitable for high-load hydraulic, food, marine and medical applications, they can be supplied in martensitic and PH grades. Full customization of dimensions, tolerances, material and heat treatment is supported.

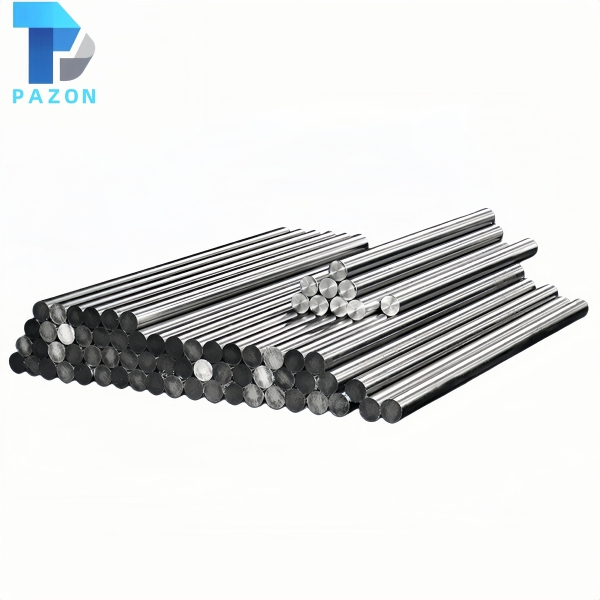

Stainless Steel Precision Ground Rods offer corrosion resistance without plating, available in diameters φ6–200 mm and lengths up to 6000 mm. They meet ISO f7/f8/h7 tolerance grades with Ra≤0.2 μm surface finish. A wide range of grades—austenitic, duplex, martensitic and PH—can be supplied to match specific strength and environmental requirements. Ideal for food, medical, marine and hydraulic applications, with full customization of dimensions, tolerances and material grades supported.

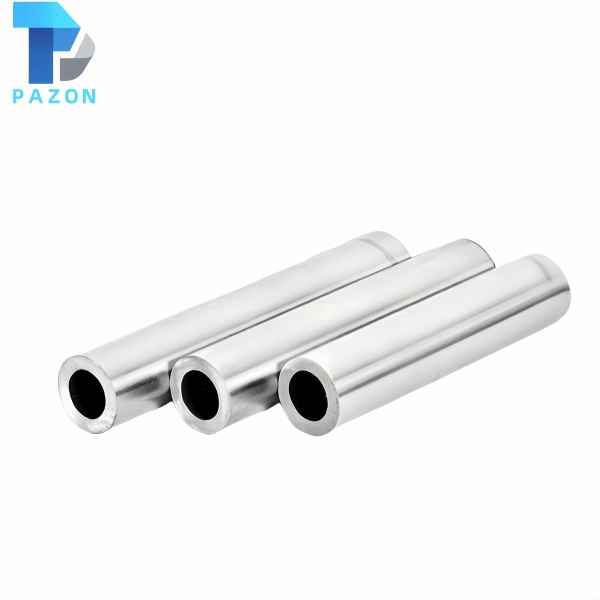

The Chrome Plated 27SiMn Tube is a non-heat-treated hollow piston rod made from 27SiMn silicon-manganese alloy steel seamless tube, offering high strength and good toughness. Available in OD φ25–300 mm, up to 8000 mm long, it features ISO f7 tolerance, an 850–1150 HV hard chrome layer, and 96-hour salt spray rating 9. Ideal for ultra-high-pressure, heavy-duty or fluid-passage hydraulic cylinders, it supports full customization of dimensions, wall thickness, heat treatment and surface finishing.

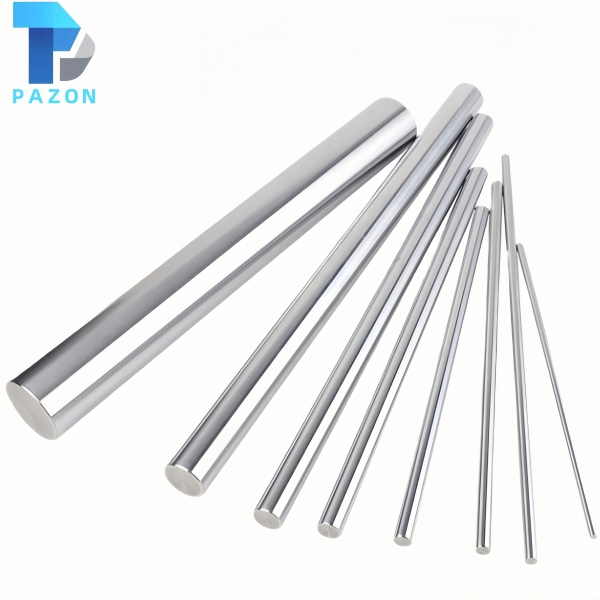

The Nitrocarburized 27SiMn Rod features a QPQ-treated surface (diffusion zone 0.30–0.40 mm, white layer ≥25 µm) achieving ≥650 HV hardness without chrome plating. Available in φ6–300 mm, up to 8000 mm long, it meets ISO f7 tolerance and 200-hour salt spray rating 9. Built on 27SiMn silicon-manganese steel with excellent nitriding response, this chrome-free rod provides superior wear and corrosion resistance for extreme heavy-duty hydraulic cylinders. Full customization supported.
