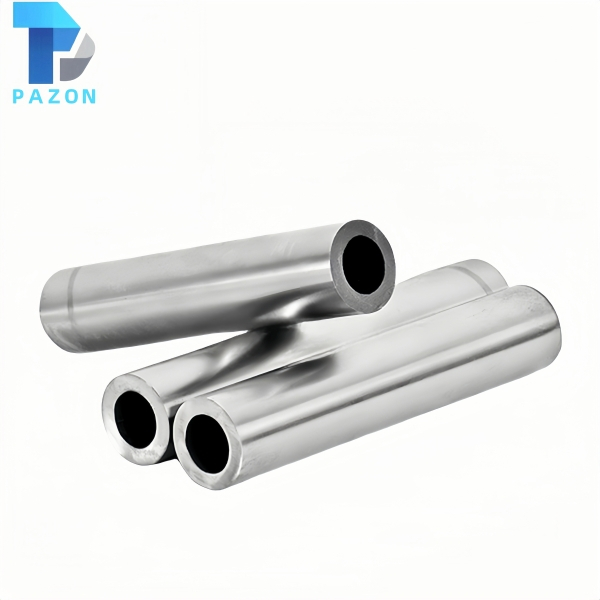

The Chrome Plated 25Mn Tube is a non-heat-treated hollow piston rod made from 25Mn seamless steel tube, offering a good strength-toughness balance with excellent machinability. Available in OD φ25–300 mm, up to 8000 mm long, it features ISO f7 tolerance, a hard chrome layer of 850–1150 HV, and 200-hour salt spray rating 9. Ideal for lightweight, fluid-passage hydraulic cylinders, it supports full customization of dimensions, wall thickness, heat treatment and surface finishing.

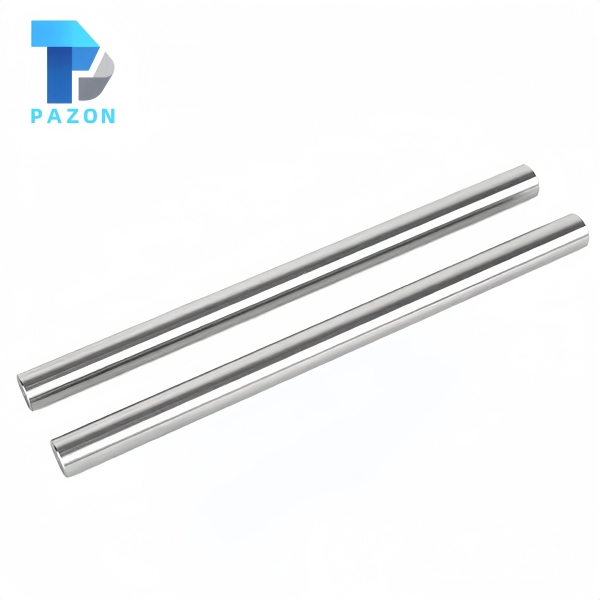

The Nitrocarburized 25Mn Rod features a QPQ-treated surface (diffusion zone 0.30–0.40 mm, white layer ≥25 µm) delivering ≥600 HV hardness without chrome plating. Available in φ6–300 mm, up to 8000 mm long, it meets ISO f7 tolerance and 200-hour salt spray rating 9. Built on 25Mn steel with good machinability, this chrome-free rod provides superior wear and corrosion resistance for hydraulic cylinders and outdoor equipment, with full customization supported.

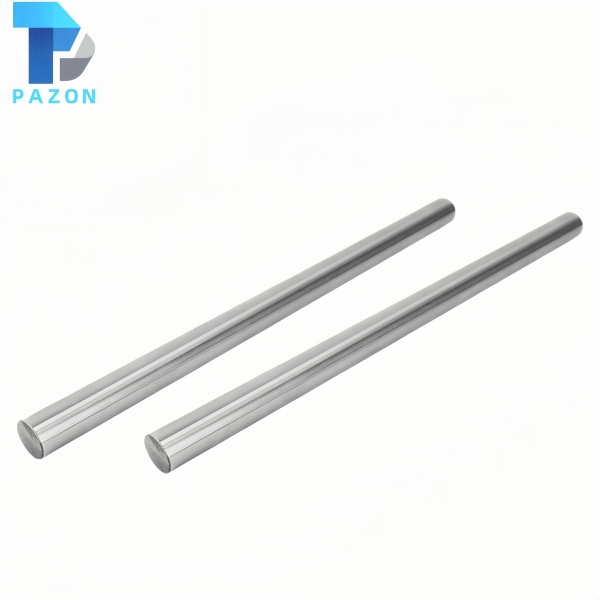

The Chrome Plated 25Mn Rod (Quenched & Tempered) combines 25Mn steel's good hardenability with enhanced core strength through Q&T treatment, achieving 200–300 HB hardness. Available in φ6–300 mm diameters and lengths up to 8000 mm, it features ISO f7 tolerance and a hard chrome layer of 850–1150 HV. With 96-hour salt spray rating 9, it is ideal for medium-to-high-pressure hydraulic cylinders. Full customization of dimensions, heat treatment and surface finishing is supported.
