Practical Hydraulic Cylinder Engineering Application Selection and Maintenance: Systematic Thinking from Scenario Matching to Service Life Extension

Introduction

Selecting the right hydraulic cylinder is a challenge of far greater complexity than simply leafing through a product catalog and ticking off a few parameters. In engineering reality, a cylinder with seemingly perfect performance specifications can fail within a short time due to the neglect of a single environmental detail or an inappropriate mounting method. Conversely, even a cylinder with generous design safety margins will not escape premature end-of-life if it is improperly maintained. The full-lifecycle performance of a hydraulic cylinder is the synergistic outcome of three integrated phases: application-oriented selection, proper installation and commissioning, and diligent routine maintenance. When delivering hydraulic solutions to clients, Wuxi Pazon Technology Co., Ltd. consistently emphasizes bringing application scenario analysis forward into the selection phase and maintaining disciplined maintenance practices throughout the equipment's entire service life. This article, proceeding from the practical logic of engineering application, outlines a systematic thinking framework for hydraulic cylinder selection, installation, and maintenance.

Part 1: Working Backwards from Operating Conditions – A Scenario Analysis Framework for Hydraulic Cylinder Selection

Hydraulic cylinder selection should not begin from a product datasheet, but rather from a thorough, in-depth analysis of the actual operating conditions. Scenario analysis across the following four dimensions is the prerequisite for scientifically grounded selection:

1. Load Characteristic Analysis

• Type of Load: Is it a gravity load (e.g., a lift platform), a friction load (e.g., driving a slide on guide rails), or an elastic load (e.g., a spring-return mechanism)?

• Load Variation Profile: Throughout the working stroke, is the load force constant, progressively increasing, or subject to sudden spikes? Does an overrunning load condition exist (a negative load where the weight is pulling, such as a descending heavy mass)?

• Degree of Eccentric Loading: Is the line of action of the load force coincident with the piston rod center axis? Any offset generates a bending moment that must be supported by the guide bushing and guide rings.

2. Motion Characteristic Analysis

• Speed Range: What are the maximum speed and the minimum stable speed? At extremely low speeds (<1 mm/s), a standard cylinder may suffer from stick-slip crawling; in such cases, a servo cylinder or a low-friction seal configuration should be considered.

• Frequency and Duty Cycle: The number of working cycles per day and the accumulated annual cycle count directly determine the design life calculation basis for seals and guide elements.

3. Environmental Factor Investigation

• Temperature Extremes: For high-temperature operation (>80°C), fluorocarbon rubber (FKM) seals must be selected, and the drop in fluid viscosity must be addressed. For low-temperature operation (<-20°C), cold-resistant seal materials and low-temperature hydraulic oil are mandatory.

• Contamination and Corrosion: In high-dust environments, the wiper seal configuration must be upgraded (e.g., a double-lip wiper or a metallic scraper ring). In corrosive environments, ceramic coatings on the piston rod or a stainless steel cylinder barrel should be considered.

• External Washdown: In applications with frequent high-pressure water jet cleaning, attention must be paid to the risk of moisture vapor invading past the wiper seal into the cylinder interior, which can lead to oil emulsification.

4. Accuracy and Response Requirements

• Positional Accuracy: Is there a requirement to stop precisely at an intermediate position? Is the accuracy demand at the millimeter level or the sub-millimeter level? The latter necessitates the adoption of servo closed-loop control.

• Response Speed: What is the required response time to a directional change command? High-frequency response demands minimizing the compressible oil volume within the cylinder and reducing plumbing lengths.

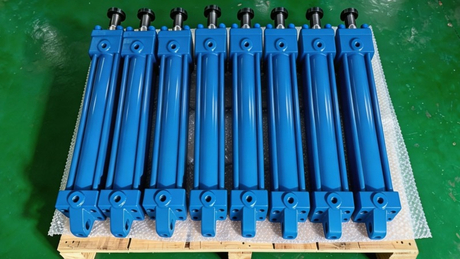

Part 2: Key Considerations During Installation and Commissioning

Once the selection process is complete, correct installation and commissioning constitute the mandatory step for unleashing the cylinder's full designed performance.

1. Installation Alignment and Verification

• For flange-mounted cylinders, the perpendicularity of the mounting face to the barrel centerline axis must be verified using a dial indicator.

• For clevis-mounted cylinders, the pivot pin axes at the cap-end clevis and the rod-end clevis must be guaranteed parallel and must lie within the same plane of motion.

• Mounting bolt tightening torque must strictly follow specification. Over-tightening can deform the cylinder body; under-tightening leads to loosening and impact loading.

2. System Air Bleeding

Prior to initial operation or after any extended shutdown period, a full-stroke bleeding procedure must be executed until the bleed valve emits a continuous, bubble-free stream of oil. Residual entrapped air is the primary perpetrator of "stick-slip" crawling and "spongy" cylinder behavior.

3. Cushioning Adjustment

If the cylinder is equipped with adjustable cushioning, the adjustment must be started from the minimum cushioning position (maximum bleed orifice). The throttling restriction is then incrementally increased until impact noise at the stroke extremity disappears and the piston stops smoothly without an abrupt deceleration pause.

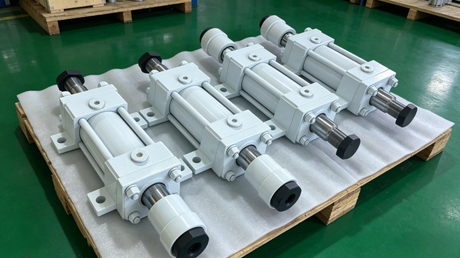

Part 3: Routine Maintenance and Service Life Extension Strategies

1. Daily Inspection Checklist

• Piston Rod Surface: Are there any scratches, rust spots, or areas of plating spallation?

• External Seal Leakage: Is there a benign wetted oil film (normal lubrication) or are distinct oil droplets forming (seal replacement required)?

• Wiper Seal Condition: Is there any embedded foreign debris or signs of aging and cracking?

• Abnormal Operating Noise: Is there a metallic impact sound (cushioning failure) or a persistent hissing sound (internal leakage)?

• Mounting Fasteners and Connections: Are any bolts loose? Is there abnormal wear on clevis pins?

2. Scheduled Maintenance Intervals

• Weekly / Every 200 Hours: External visual inspection, wipe down the piston rod, check all fittings for seepage.

• Quarterly / Every 2,000 Hours: Re-tighten mounting bolts, verify cushioning performance, take an oil sample for cleanliness analysis.

• Annually / Every 8,000 Hours: Replace the wiper seal and the primary rod seal. Inspect guide ring wear levels. If necessary, disassemble the cylinder, perform an internal cleaning, and replace the complete seal set.

3. Golden Rules for Extending Service Life

• Maintain Fluid Cleanliness: Over 70% of hydraulic system failures are related to oil contamination. Replace return-line filter elements and air breather filters at scheduled intervals, maintaining oil cleanliness to NAS Class 9 or better.

• Avoid Over-Stroke Operation: It is strictly forbidden to use the metal-to-metal dead stops at the cylinder ends as the operational working stop positions.

• Prevent Cold-Start Damage: When commissioning the system in a low-temperature environment, the cylinder should undergo several low-pressure reciprocating pre-warm cycles. Full loading should only be applied after the seals have regained flexibility and the fluid has been uniformly circulated and warmed.

• Long-Term Idle Restart Protocol: If the equipment has been idled for more than 3 months, the wiper seal must first be inspected for dry cracking. The pump should then be manually cycled at low pressure for several minutes, followed by a full-stroke bleeding procedure. Only after confirming no abnormalities should the pressure be incrementally increased to the full working pressure.

Part 4: Rapid Diagnostic Thinking for Typical Faults

Establishing a structured diagnostic logic chain of "Phenomenon → Cause → Targeted Investigation" is key to enhancing maintenance efficiency:

• Insufficient Thrust → Has system pressure failed to build? Is internal leakage exceeding the limit? Are the seals damaged?

• Reduced Speed → Is pump flow rate inadequate? Is internal leakage diverting flow? Is return-line back-pressure excessive?

• Stick-Slip Crawling → Has all air been bled from the cylinder? Is there uneven seal friction? Is the guide clearance excessive?

• Abnormal Oil Temperature → Is the hydraulic oil viscosity excessively high? Is the unloading circuit failing to engage? Is sustained throttling generating excessive heat?

Conclusion

From precise scenario-based analysis for selection, through disciplined installation and commissioning, to persistently implemented daily inspections, the engineering application quality of a hydraulic cylinder is sustained across the equipment's entire lifecycle. Wuxi Pazon Technology Co., Ltd. firmly believes in delivering more than just a hydraulic cylinder product to clients; we provide a full-cycle technical service that spans from selection guidance through to maintenance recommendations. Only by embedding application knowledge into every practical operational step can truly long-term, reliable operation of the hydraulic actuation system be realized.
