This article covers piping layout design and installation standards for honed seamless tubes in hydraulic systems. It outlines key principles: orderly routing with adequate spacing for heat dissipation and maintenance, minimizing total pipe length to reduce pressure loss and potential leak points, and the absolute avoidance of assembly-induced stress by ensuring natural alignment at connections. The configuration of fixed and sliding pipe supports is detailed, including recommended support spacing based on tube diameter. The article emphasizes strict correspondence with hydraulic schematics, differentiating pressure and return lines, and integrating test points and air bleed valves. Pre-installation cleaning protocols are also addressed, including internal flushing and proper torque-controlled tightening of connectors.

This article details the comprehensive control system required to achieve flawless surface quality on honed seamless tubes. It explains the fine-tuning of the "iron triangle" of honing parameters—speed, stone pressure, and coolant flow—and advocates a staged pressure strategy for rough and finish honing. The critical importance of abrasive stone management is addressed, covering grit size selection, wear monitoring to prevent grinding burn, and dressing for concentricity. The indispensable role of the skilled operator is highlighted, from first-article confirmation and in-process patrol inspection to end-of-shift cleanliness discipline. Finally, the 100% final inspection gate is described, encompassing directed-light visual inspection, multi-point surface roughness profilometry, and the recording of all data into a traceable quality dossier. This multi-layered approach ensures consistent, defect-free surface quality for every tube shipped.

This article analyzes the multiple factors influencing honing cycle time. It details how increasing tube diameter and length, and geometric complexity from stepped or interrupted bores, directly extend machining duration. The non-linear relationship between precision grade and time is explained: moving from H9 to H8, and especially to H7, demands multi-stage rough, semi-finish, and finish honing with progressively finer abrasives, along with more intensive inspection and potential inter-stage stress-relief stabilization. The efficiency contrast between one-off custom work, where set-up dominates, and batch production, which amortizes set-up and enables process optimization, is examined. The decisive impact of equipment automation level is also addressed. The article helps customers form realistic delivery expectations based on product specifications and quality requirements.

This article addresses the role of honed seamless tubes in fluid power system design. It explains how low bore surface roughness minimizes frictional pressure loss along pipelines, and how high roundness eliminates energy-dissipating secondary flows, thereby enhancing overall system transmission efficiency. The standard engineering calculation sequence for flow velocity and flow rate is outlined, emphasizing the importance of the Darcy-Weisbach equation, Reynolds number, and adherence to recommended fluid velocity ranges for suction, pressure, and return lines. Critical piping layout principles are detailed, including organized routing, proper support spacing to control vibration, the imperative to avoid assembly-induced stress by ensuring natural alignment of connections, and the implementation of protective measures against mechanical damage and excessive heat, all contributing to a reliable and serviceable hydraulic installation.

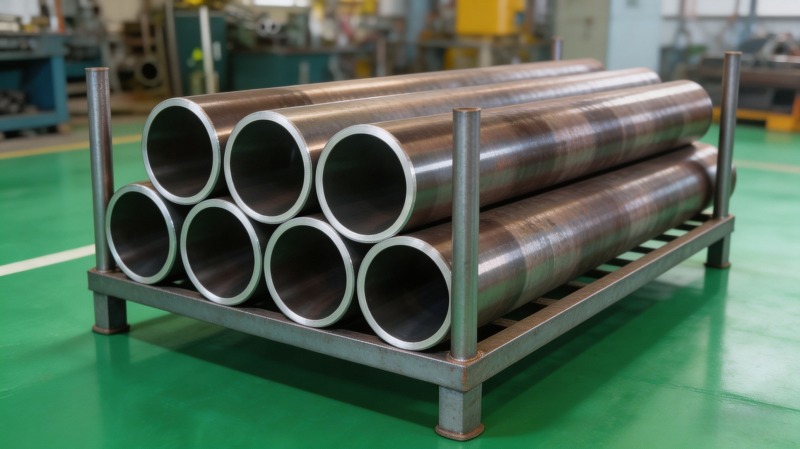

This article examines how process parameters and quality systems deliver zero-defect honed tubes. It explores the non-linear relationship between precision grade requirements, material hardness, equipment automation level, and machining time. The core honing parameters—cutting speed, stone pressure, and coolant type/flow—are analyzed, emphasizing a staged pressure strategy for rough and finish honing, and the critical role of coolant filtration. Equipment maintenance disciplines, including stone management, machine geometric calibration, and coolant system upkeep, are identified as the foundation of process stability. A closed-loop quality system, from raw material verification through in-process monitoring to final inspection and statistical data analysis, is presented as the essential mechanism for achieving consistent batch-to-batch quality and driving continuous process improvement.

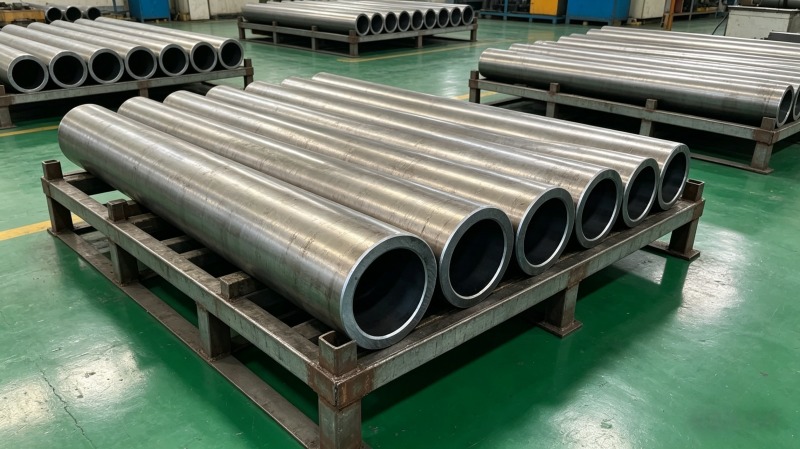

This article examines the fundamental mechanical properties governing honed seamless tube performance. It details the engineering significance of tensile strength as the ultimate load-bearing capacity against pressure spikes, and yield strength as the threshold preventing permanent plastic bore expansion. Strategies for strength enhancement through alloy chemistry, quench-and-temper heat treatment, and cold-work strengthening are outlined. Hardness is analyzed as a balance between bore wear resistance and machinability, with the concept of a gradient "hard surface, tough core" structure introduced. The crucial role of toughness in absorbing impact energy and preventing brittle fracture is explained, with influencing factors—grain size, non-metallic inclusion cleanliness, and low-temperature ductile-to-brittle transition behavior—examined. These mechanical properties collectively define the safety and durability of hydraulic cylinder barrels.

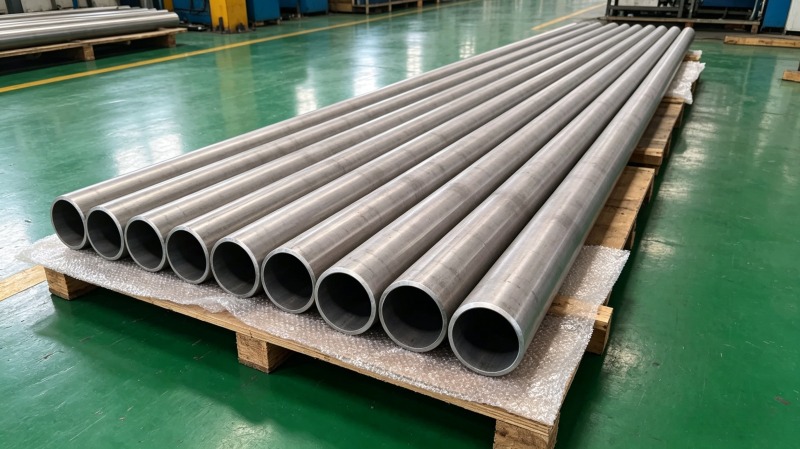

This article analyzes the engineering significance of roundness and outer diameter in honed seamless tubes. It explains how poor bore roundness causes non-uniform seal compression, leading to leakage and accelerated wear, and how the honing process actively corrects ovality through its self-centering floating action. The outer diameter's role as the precision interface for structural assembly is detailed, emphasizing the critical importance of coaxiality between inner and outer surfaces to prevent wall thickness eccentricity and stress concentration. The synergistic effect of high roundness and uniform wall thickness is discussed, showing how it promotes uniform hoop stress distribution, delays fatigue crack initiation, and enhances the long-term structural reliability of hydraulic cylinder barrels.

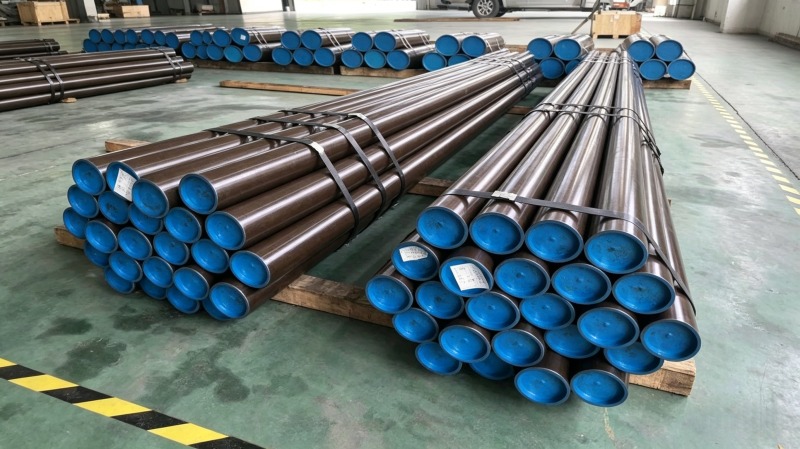

This guide details how to identify and select high-quality honed seamless tubes. Five critical parameters are explained: ID tolerance (H8/H9) for consistent seal compression, roundness to prevent localized leakage, straightness to avoid parasitic side-loading, surface roughness (Ra 0.2–0.4 μm) for balanced lubrication, and cross-hatch angle (30°–60°) for oil retention. Three practical field inspection methods are described: directed-light visual inspection to detect chatter and scoring, tactile gloved-hand inspection for surface uniformity and end flare, and an oil film spread test to verify surface cleanliness. Common selection pitfalls are addressed—the misconception that a mirror finish is ideal, neglecting wall thickness tolerances, and overlooking tube straightness for long-stroke cylinders. Proper selection is emphasized as essential for reliable hydraulic system performance.

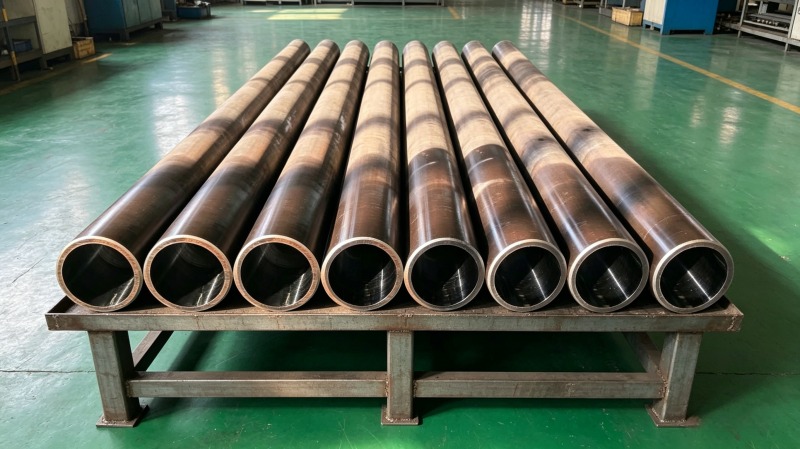

This article defines the honed seamless tube as a precision-engineered cylinder barrel manufactured from seamless steel and finished via honing to achieve exact bore dimensions, geometric accuracy, and a characteristic cross-hatch surface pattern. It explains the structural advantages of seamless tubing over welded alternatives, particularly the absence of a heat-affected zone. The honing process serves three critical functions: correcting ovality and taper, refining surface roughness, and creating oil-retaining grooves for optimal seal lubrication. Key quality indicators include uniform 45°–60° cross-hatch, H8/H9 tolerances, and pristine surface finish. The honed tube's strategic role in hydraulic system reliability is underscored.

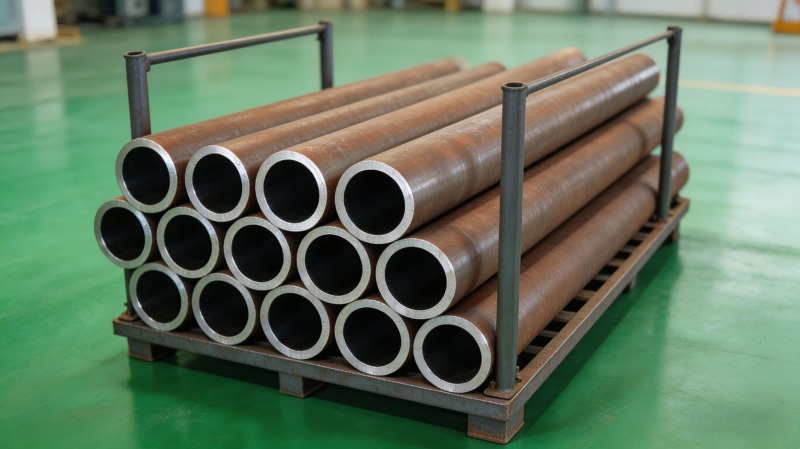

This article introduces precision internally threaded honed tubes as an integrated structural solution. It describes the combined cold rolling and honing process: internal thread cold rolling using a profiled mandrel to chiplessly form a dense, continuous-grain thread structure, followed by synchronized CNC honing to deburr, refine flank precision, and induce beneficial root compressive stress. Three key application scenarios are detailed: integral barrel cooling channels eliminating welded jacket failure risks, compact helical motion transmission elements with zero backlash, and uniform fluid distribution or mixing manifolds. The critical process control challenges of maintaining tight wall thickness tolerance before rolling and achieving precise honing head-to-thread lead synchronization are discussed. The technology enables the transition from supplying smooth-bore tubes to delivering monolithic components with functionally contoured internal cavities.
