Integrating Precision Tubing into the System — Piping Layout Design and Installation Standards

The ultimate mission of a honed seamless tube is not to rest idle in a warehouse awaiting deployment, but to perform a vital, active function as an integral component within a larger, dynamic hydraulic system. The inherent precision of the tube itself cannot independently translate into system-level performance. That translation relies upon the synergistic cooperation of the tube with the manner in which the piping system is laid out, the methods by which the tubes are connected, and the way they are supported and secured. The science of sound piping layout design is an absolutely necessary condition for achieving a hydraulic system that operates with the targeted levels of efficiency, reliability, and safety over its intended service life.

Part 1: Fundamental Principles of Piping Layout Design

The layout and routing of the piping within a hydraulic system must be governed by a set of core engineering principles. These principles serve to ensure that the installed system is not only functional, but also safe, maintainable, and free from the hidden stresses that can lead to premature failure.

1. Rational and Orderly Routing

Pipelines should, as a primary rule, be routed in a logical, organized manner, following horizontal and vertical lines and arranged in clearly defined, orderly layers or planes. This approach produces a piping installation that is visually comprehensible, where the function and path of each individual line can be readily understood by maintenance personnel. Between adjacent parallel pipelines, sufficient clearance gaps must be deliberately designed and maintained. A commonly applied rule of thumb is that the minimum spacing between parallel lines should be not less than 1.5 times the nominal outer diameter of the larger of the two tubes. This spacing serves multiple important functions: it allows for adequate air circulation around each pipe to facilitate convective heat dissipation; it provides sufficient physical access space for an operator to use standard maintenance tools such as wrenches to service individual fittings without disturbing adjacent lines; and it accommodates the slight thermal expansion and contraction movements of the pipes. Pipes that must cross one another in the three-dimensional routing space should be arranged to avoid any direct physical contact, as even the slight relative motion induced by pressure pulsations or thermal cycling could, over time, lead to fretting wear and material thinning at the point of contact.

2. The Principle of the Shortest Feasible Path

While satisfying the equally important requirements for a neat, logical, and maintainable layout, the total developed length of the piping from source to destination should be kept to the minimum that is practically achievable. Every additional meter of installed pipe contributes a corresponding increment to the overall frictional pressure loss along the pipeline—a parasitic energy loss that must be overcome by increased pump power. Furthermore, every additional meter of pipe, and every additional joint, bend, or fitting, represents an incremental increase in the total number of potential leak points in the system. A piping design that achieves its functional connectivity objectives with elegant simplicity and minimal total length is a design that is inherently more efficient and more reliable.

3. The Absolute Avoidance of Assembly-Induced Stress

When connecting a pipe to the fixed port of a hydraulic component—be it a pump, a valve manifold, a cylinder, or a filter housing—the pipe end must naturally and effortlessly align with the component's port connection without any need for external force. It is a strictly forbidden practice to use the tightening torque of a threaded connector fitting to forcibly pull, push, or bend a misaligned pipe into position to make a connection. Such a practice introduces a continuous, static, assembly-induced bending moment and tensile stress into the pipe wall at the connection point. This stress, which is superimposed upon the dynamic pressure stresses of normal operation, acts as a potent driver of fatigue crack initiation at the thread root or at the heat-affected zone of any adjacent weld, creating a latent, high-risk failure point that can lead to a sudden, unexpected pipe rupture in service. If a misalignment is discovered during installation, it must be corrected by re-forming and re-routing the pipe, not by forcing the joint.

Part 2: The Configuration of Pipe Clamps and Support Brackets

A honed seamless tube, particularly a thick-walled tube destined for high-pressure service, possesses a significant amount of self-weight. When a long horizontal pipe run is supported only at its endpoints, its own weight will cause it to sag or deflect downward between the supports. This vertical deflection not only introduces a permanent bending stress into the pipe wall but also alters the internal cross-sectional flow area along the pipe, disrupting the flow regime and generating low-frequency, flow-induced vibration.

• Determination of Support Spacing: The maximum permissible unsupported span between pipe clamps or supports is a function of several variables, including the pipe outer diameter, wall thickness, material density, and the severity of the vibration environment. As a general practical guide for carbon and alloy steel hydraulic tubing, pipes with an outer diameter in the range of 20 mm to 40 mm should be supported at intervals of approximately 1.5 to 2.5 meters. For heavier, larger-diameter pipes with outer diameters in the range of 50 mm to 80 mm, the support spacing can typically be relaxed to the range of 2.5 to 3.5 meters. These are guideline values, and for critical high-pressure or high-vibration installations, a detailed structural analysis of the piping system may be warranted.

• The Coordinated Use of Fixed and Sliding Supports: A piping support system must both constrain the pipe against unwanted motion and accommodate its necessary thermal movements. This is achieved through a deliberate combination of fixed-point and sliding-point supports. At strategic locations, such as near a connection to a large rigid component that serves as an anchor point, a rigid, fixed pipe clamp is installed that positively grips the pipe and prevents any axial displacement. At intermediate points along the pipe run, sliding or guide supports are used. These supports restrain the pipe against lateral movement and vibration, but they are designed to permit a small degree of free axial sliding motion, thereby accommodating the thermal expansion and contraction of the pipe as the system warms up and cools down.

• Vibration Damping Measures: In sections of the piping that are located in close proximity to sources of strong mechanical vibration—such as directly adjacent to a hydraulic pump's discharge port—it is good practice to incorporate vibration-damping elements into the support clamps. This typically involves the use of clamps that feature an elastomeric rubber or polymeric liner or insert. The dampening liner absorbs and dissipates high-frequency vibratory energy, preventing it from propagating along the pipe and from potentially exciting a resonant vibration of the piping structure.

Part 3: Direct Correspondence with the Hydraulic Schematic Diagram

The physical piping layout design must be executed in strict, traceable, one-to-one correspondence with the formal hydraulic system schematic diagram. Every individual pipe run shown on the schematic must be unambiguously identifiable on the piping layout drawing and in the physical installation. Its routing path, its internal diameter, its wall thickness schedule, and the type of connections at each end must be clearly and completely specified.

In complex, multi-actuator hydraulic systems, several critical distinctions must be rigorously maintained during the layout and specification process. Pressure lines, which convey high-pressure fluid from the pump to the actuators, are specified with a wall thickness adequate for the maximum system operating pressure. Return lines, which convey the low-pressure fluid back to the reservoir, may utilize a lighter wall thickness. These two line classes must never be interchanged or confused, as subjecting a thin-walled return line to full system pressure would risk a catastrophic pipe rupture. Additionally, the layout must provide for the future needs of system commissioning, tuning, and fault diagnosis. To this end, the installation of pressure test point quick-connect fittings at strategic locations—such as immediately upstream and downstream of every critical actuator and at the inlet and outlet of every major control valve—should be designed into the layout. Finally, effective air bleeding is essential for proper hydraulic system function. Every local high point in the piping system, where entrained air bubbles would naturally collect, must be equipped with an air bleed valve to allow for the convenient and complete purging of air from the system.

Part 4: Pre-Installation Cleaning and Protection Protocols

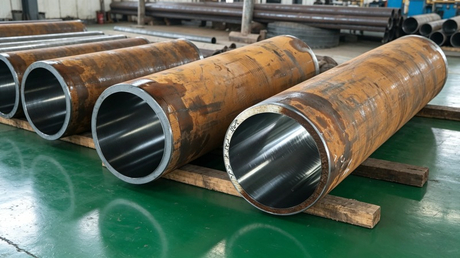

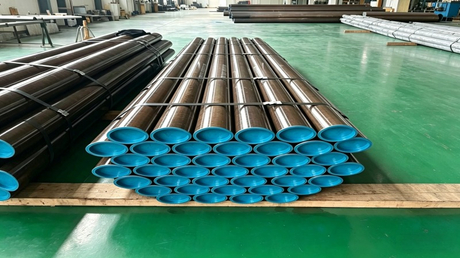

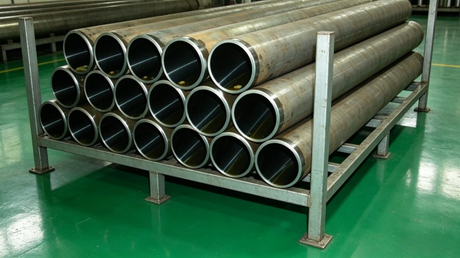

The very last operation to be performed on a pipe before it is physically connected into the hydraulic circuit is the verification and assurance of its own internal cleanliness. A newly manufactured honed seamless tube normally leaves the factory with its open ends hermetically sealed with tightly fitting plastic protective caps or plugs. These protective closures serve the vital function of preventing the ingress of atmospheric dust, moisture, and physical contamination during transport and on-site storage. They must not be removed until the absolute last practical moment immediately before the tube is to be connected.

Immediately prior to making the final connections, the internal bore of each tube should be thoroughly flushed through with a clean, filtered, compatible cleaning solvent or with the specified system hydraulic fluid, using a high-velocity flush to dislodge any residual particulate matter that may have settled during storage. The external surface of the tube, particularly in the region immediately adjacent to the connector fitting, should be carefully wiped clean of its protective anti-rust oil coating using a clean, lint-free, non-woven cloth, to prevent the oil from contaminating the connection's sealing surfaces. When the threaded connectors are being tightened, a calibrated torque wrench must be used to apply the precise, specified tightening torque evenly and under control. The common but highly damaging practice of overtightening a hydraulic fitting "for good measure" must be strictly avoided, as it can easily distort the connector threads, gall the sealing surfaces, or even fracture the flared or compression end of the tube, creating a latent failure point that could lead to a catastrophic, high-pressure fluid leak when the system is first energized.
