Synergistic Integration of Material Selection and Manufacturing Process for Precision Piston Rods: Holistic Considerations from Design to Production Realization

A common and costly scenario encountered in engineering practice is that of a design engineer specifying a material grade and a target hardness on a drawing, only to encounter significant difficulties during prototyping or production ramp-up—difficulties that manifest as excessive machining costs, unachievable tolerances, or premature component failures in service. The root cause of such problems frequently lies in a fundamental disconnect between the selected material and the manufacturing processes required to shape and treat it. An integrated "design–material–process" philosophy is advocated to bridge this gap, enabling the translation of an idealized design into a reliable, manufacturable, and durable product. Wuxi Pazon Technology Co., Ltd. presents this technical discussion on aligning material choice with process reality.

Part 1: Three Critical Manufacturability Considerations That Must Precede Material Selection

When selecting a material for a precision piston rod, it is imperative to evaluate not only the mechanical properties and corrosion resistance required for the application, but also, and with equal rigor, the inherent processability of the candidate material. Three specific aspects demand upfront attention.

1. Machinability

The ease with which a material can be cut, turned, milled, and drilled has a direct and substantial impact on manufacturing cost, tooling life, and achievable dimensional quality.

• C45 (AISI 1045) carbon steel exhibits excellent machinability in its normalized or annealed condition, and remains readily machinable even after quenching and tempering to moderate core hardness levels. Cutting tool life is long, metal removal rates can be high, and machining costs are consequently low. This is a significant contributor to the cost-effectiveness of this widely used grade.

• Alloy steels such as 40Cr (AISI 5140) and 42CrMo4 (AISI 4140) , after quenching and tempering, attain elevated hardness and tensile strength. While this is the intended outcome for service performance, it simultaneously increases the cutting forces experienced during machining. Carbide tooling and reduced cutting speeds must be employed to manage tool wear and prevent surface damage to the workpiece. The machinability is rated as moderate and must be factored into manufacturing planning.

• Austenitic stainless steels (304, 316) are notoriously difficult to machine. Their low thermal conductivity concentrates frictional heat at the tool tip, and their high rate of strain hardening causes the material ahead of the cutting edge to become progressively harder, wearing the tool rapidly. Specialized tool geometries, rigid machine setups, and copious high-pressure coolant are essential. The cost of machining these materials is substantially higher, and this must be accepted as an inherent trade-off for the superior corrosion resistance they provide.

2. Heat Treatability

The response of a material to the intended heat treatment processes is a critical determinant of the final component properties and the risk of processing defects.

• Hardenability: This is the property that governs the depth to which a fully martensitic structure can be formed during quenching. Alloy steels such as 40Cr possess sufficiently high hardenability to achieve a fully hardened case and a strong core when quenched in oil. The slower cooling rate of oil quenching, relative to water, substantially reduces the internal stress gradients that cause distortion and cracking. For large-diameter piston rods, where the thermal mass limits the achievable cooling rate at the center, a material with high inherent hardenability must be selected to ensure that the core achieves the required strength and is not left in a soft, weak, transformed-ferrite condition.

• Decarburization Susceptibility: Steels with elevated silicon content can suffer from surface decarburization—the loss of carbon from the surface layer—when heated in a non-protective atmosphere. This results in a soft, weak surface layer that must be removed by subsequent grinding. If decarburization-sensitive materials are used, a controlled protective atmosphere furnace is necessary, adding to processing cost and complexity.

• Temper Embrittlement: Certain alloy steels, particularly those containing chromium and nickel, exhibit temperature-dependent embrittlement phenomena. When slowly cooled through specific temperature ranges during tempering, their grain boundaries can become embrittled, leading to a catastrophic loss of toughness designated as temper embrittlement. Mitigation requires a rapid cool, such as a water quench, directly from the tempering temperature—a process step that adds complexity and can itself introduce new residual stresses.

3. Compatibility with Intended Surface Treatments

The surface engineering process planned as the final finishing step must be chemically and thermally compatible with the chosen base material.

• Hard chrome plating is applicable to virtually all ferrous alloys. However, the adhesion and integrity of the chrome deposit are influenced by the substrate hardness and surface preparation. Plating onto an excessively hard and brittle untempered martensitic surface is poor practice; a properly tempered base is essential for long-term adhesion.

• Nitriding is effective only on steels that contain specific nitride-forming alloying elements, principally aluminum, chromium, molybdenum, and vanadium. Dedicated nitriding steels such as the 38CrMoAl grade, as well as 40Cr and 42CrMo4, respond strongly to nitriding, developing high surface hardness. Plain carbon steels, lacking these alloying additions, do not form hard, stable alloy nitrides and achieve only a marginal increase in surface hardness from nitriding.

• QPQ salt-bath treatment, while applicable to a broad range of steels, is conducted at a temperature that can approach or slightly exceed the prior tempering temperature of a quenched and tempered component. This can lead to a measurable reduction in the core hardness of the pre-tempered part, a secondary softening effect that must be accounted for in the overall property specification.

Part 2: The Interdependence of Tolerance Design, Material Behavior, and Process Capability

The achievability of the specified dimensional and geometric tolerances on a precision piston rod is intimately linked to the thermal distortion characteristics of the selected material and the specific process sequence employed.

• Quench Distortion in Slender Rods: Piston rods with a length exceeding one meter are particularly susceptible to bending and warping during the rapid, non-uniform cooling of the quenching operation. The resulting bow can be substantial, potentially amounting to several millimeters of total indicator runout. This reality dictates that the engineering drawing and the process plan must anticipate this distortion. Sufficient stock allowance must be reserved on the diameter for post-heat-treatment straightening and finish grinding to remove the distortion. Furthermore, overly tight tolerances should not be specified on features in regions of the part that will predictably experience the greatest distortion, unless a further local machining operation is specifically planned after heat treatment.

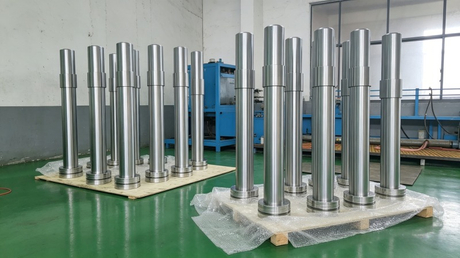

• Thread Protection and Sequencing: External connection threads represent a critical design feature. If threads are machined prior to heat treatment, they will be exposed to oxidation and scaling from the furnace atmosphere and to microstructural dimensional changes. The resulting surface condition and minor pitch-diameter distortion may necessitate a costly and time-consuming post-treatment thread chasing or grinding operation. A more robust approach for precision threads is to plan for them to be formed after the core hardening process, using a thread rolling operation. This cold-forming sequence not only preserves thread accuracy but also imparts the significant fatigue-strength-enhancing benefit of cold-worked, compressive-stressed thread roots—a major advantage for a component subjected to alternating tensile loads.

Part 3: Practical Insights on Material Selection Derived from Field Experience

A guiding principle familiar to experienced practitioners is that knowing the specific environment in which a component will operate is often more critical to a successful material selection than knowing the dimensional tolerances alone. Practical selection recommendations based on the operating environment are summarized below.

Part 4: A Collaborative Service Model for Integrated Design and Manufacturing

To prevent latent problems from being inadvertently designed into a piston rod specification, a collaborative technical support model that engages at the earliest stages of a project is highly beneficial. This support can include a structured review of the proposed design from a manufacturing feasibility perspective, assessing whether the specified material, hardness range, and tolerance set are internally consistent and achievable with the planned processing route. For critical dimensions, the anticipated distortion from heat treatment can be predicted through engineering analysis, allowing the stock removal allowances to be optimized. Where multiple material or process options present themselves, comparative prototype samples can be produced and subjected to bench testing under representative conditions. The resulting performance data then provides an objective, empirical basis for finalizing the material and process selection, moving the decision from the realm of assumption into the domain of validated engineering knowledge.
