Engineering Diagnosis of Hydraulic Cylinder Seal Failure: A Full-Chain Analysis from Leakage Phenomena to Root Causes

Introduction

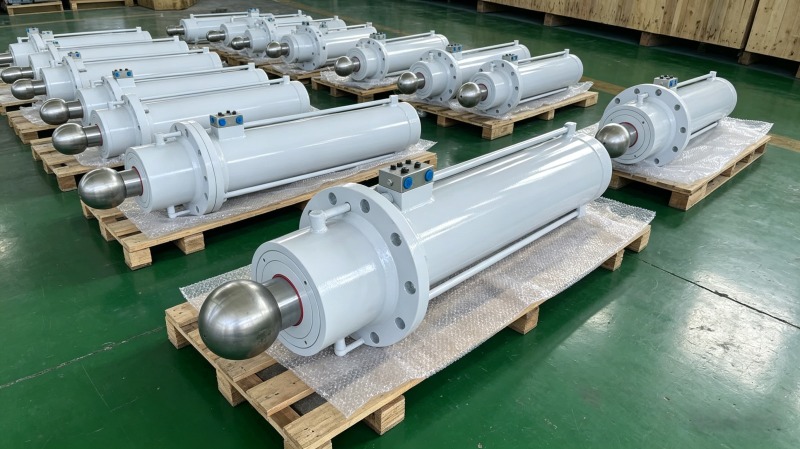

In the routine maintenance of hydraulic cylinders, "oil leakage" is the most common issue and the most vexing headache for equipment managers. However, "oil leakage" is merely a symptomatic end result. Lurking behind it may be a multitude of entirely different root causes, including seal material aging, out-of-tolerance fitting clearances, oil contamination, or misalignment-induced side loading. Simply replacing the seals without tracing the fundamental cause frequently leads to a recurring cycle of "replaced, then leaking again shortly thereafter." When providing repair and technical support to clients, Wuxi Pazon Technology Co., Ltd. consistently emphasizes the establishment of a systematic diagnostic thought process: Phenomenon → Mechanism → Root Cause → Countermeasure. This article classifies the commonly encountered hydraulic cylinder seal failure phenomena in engineering practice and dissects, one by one, the underlying failure mechanisms and the directions for targeted investigation.

Part 1: External Leakage – The Multiple Root Causes of Visible "Oil Dripping"

External leakage refers to hydraulic oil seeping out to the external environment from the cylinder head where the piston rod extends, from static end-cap seals, or from fluid port fittings.

1. External Leakage at the Rod Seal

This is the most frequently occurring leakage point. Potential causes include:

• Seal Lip Wear: Long-term reciprocating motion results in wear of the seal lip material. The interference fit between the lip and the rod body is lost, creating a microscopic leakage gap.

• Piston Rod Surface Damage: The rod body exhibits scratches, rust pits, or plating spallation. As the seal lip reciprocates over these defects, it is repeatedly cut and traumatized, failing within a short period.

• Seal Material Hardening/Aging: After exposure to high temperature or prolonged service, the seal ring loses its inherent elasticity and can no longer compensate for the wear clearance.

• Negative Pressure Suction/Oil Expulsion: During high-speed motion, the seal operates in a dry-friction state, or the system design creates negative pressure at the rod seal interface, drawing minute amounts of oil outward.

2. External Leakage at Static Seals

• Oil seepage at the threaded connection between the cylinder head and the barrel is often caused by O-ring aging, O-ring cutting damage during assembly, or out-of-tolerance seal groove machining.

• Leakage at fluid port fittings is frequently due to sealing washer deformation, insufficient thread preload, or loosening induced by vibration.

3. Diagnostic Strategy

• Observe the Leakage Rate: Rapid, distinct oil droplets typically indicate that the seal lip is already severely damaged. A slow seepage or wetting may indicate early-stage hardening of the seal material.

• Inspect the Piston Rod Surface: Run a fingertip axially along the rod surface to feel for any scratch "step." If scoring is found, the seals must be replaced, and the piston rod must be either repaired or replaced concurrently.

• Inspect the Leakage Oil Color: If the oil is black and viscous, this indicates severe oxidation. The system oil temperature and the oil change interval must be investigated.

Part 2: Internal Leakage – The Invisible Loss of Thrust Force

Internal leakage is the phenomenon of pressurized oil "short-circuiting" from the high-pressure chamber across the piston seal into the low-pressure chamber. It does not manifest directly as external dripping, but it brings about a decline in thrust force, unstable actuation speed, and abnormal heat generation.

1. Typical Symptoms of Internal Leakage

• When the cylinder is holding a load under pressure, the piston rod exhibits a visually perceptible slow drift (cylinder "self-creep" phenomenon).

• The cylinder's force output is noticeably lower than the theoretically calculated value.

• When the cylinder operates without load, touching the barrel at both ends with a hand can reveal a distinct temperature difference—the throttling of internal leakage flow across the piston seal is the heat source.

2. Causes of Internal Leakage

• Piston Seal Ring Wear or Damage: The causes are analogous to those for rod seal failure, but here the wear originates from the condition of the barrel's internal bore.

• Excessive Guide Ring Wear: Worn guide rings allow the piston to sink radially within the barrel. This enlarges the diametral clearance between the piston body and the barrel bore, into which the seal ring is then extruded under high pressure, sustaining clearance extrusion damage ("nibbling").

• Barrel Bore Internal Scoring: Longitudinal scratches on the barrel bore, caused by contamination or cavitation, form leakage paths that bridge across the sealing interface.

3. Diagnostic Methods

• Pressure Hold Test: The piston is locked at a specific position. Rated pressure is applied to the high-pressure chamber, and the volumetric flow of oil expelled from the low-pressure chamber is measured over a unit of time. If this flow rate exceeds the allowable value defined by the applicable standard, internal leakage is deemed to have failed the acceptance criteria.

• Acoustic/Auscultation Method: Using a mechanical stethoscope placed against the cylinder barrel, a continuous "hissing" sound of high-pressure oil jet flow can be heard if the internal leakage is severe.

Part 3: Wiper Seal Failure – "The Breaching of the City Gate" of the Sealing System

The wiper seal, located at the outermost extremity of the cylinder, constitutes the first line of defense. Its failure, although not typically causing immediate visible leakage, triggers a cascade of consequential damage.

1. Failure Modes

• Lip Inversion or Extrusion: High-pressure oil has already leaked past the primary rod seal into the internal cavity behind the wiper. The accumulated pressure then forces the wiper lip to invert or be physically extruded out of its groove.

• Lip Wear/Hardening: After prolonged scraping action, the lip material fatigues and hardens, losing its elasticity and its ability to tightly conform to the rod surface.

• Foreign Object Embedment: Iron particles or abrasive grit pierce the lip and become embedded within it. This is equivalent to installing a "miniature lathe tool" on the wiper seal, which continuously scores the piston rod surface during every stroke.

2. Systematic Investigation

When fresh scratches are observed on the piston rod surface, or black wear debris is seen being extruded at the wiper seal lip, the cylinder must be stopped from operation immediately. The physical integrity of the wiper lip should be examined, and an investigation should be launched into whether the upstream primary rod seal has already developed significant internal leakage, causing excessive back-pressure behind the wiper seal.

Part 4: Systematic Root Cause Investigation Table for Seal Failures

Conclusion

Hydraulic cylinder seal failure is never an isolated event. It is the cumulative and superimposed manifestation along a timeline of multiple factors from design, manufacturing, operation, and maintenance. Wuxi Pazon Technology Co., Ltd. recommends that users establish a case-by-case failure record archive for seal incidents. Each set of replaced seals should be subjected to morphological analysis, allowing the chain of causation to be traced backwards to the root cause. Through this systematic approach, the hydraulic cylinder application management proficiency can be progressively elevated.
