The Invisible Variables — Quality Influencing Factors That Are Easily Overlooked

When discussing the quality of honed seamless tubes, attention tends to focus overwhelmingly on the honing process itself. Yet, there exists a set of "invisible variables" that operate throughout the entire manufacturing chain. Although they are not directly involved in the abrasive cutting action, they exert a profound and often decisive influence on the ultimate performance and long-term quality stability of the finished product. A comprehensive quality assurance philosophy must account for these hidden factors.

Part 1: The Metallurgical Quality of the Raw Material

The intrinsic cleanliness and microstructural homogeneity of the steel from which the tube is made constitute the fundamental bedrock upon which all subsequent mechanical properties are built. Residual tramp elements within the steel, most notably sulfur and phosphorus, which are present as impurities from the original steelmaking process, can segregate to the grain boundaries of the steel during solidification and subsequent thermal processing. There, they can form low-melting-point eutectic compounds or embrittling segregation films at the grain boundaries. The presence of such grain-boundary phases renders the steel susceptible to hot shortness—brittleness and cracking during hot working—or to cold brittleness, a severe loss of toughness at low service temperatures.

Non-metallic inclusions, which are microscopic foreign particles such as aluminum oxide clusters (alumina) and complex silicate slag particles that become entrapped within the steel during its manufacture, act as potent, pre-existing stress concentration sites within the metallic matrix. The interface between a hard, brittle inclusion and the surrounding ductile steel is a site of mechanical discontinuity. Under the influence of the cyclic alternating stresses experienced by a hydraulic cylinder barrel in service, these inclusion-matrix interfaces are the preferential locations for the nucleation of fatigue micro-cracks. Once initiated, these cracks will propagate with each subsequent load cycle, ultimately leading to fatigue failure of the component.

The use of high-purity, clean steels—such as those that have been subjected to secondary refining processes including vacuum degassing to remove dissolved gases and volatile tramp elements, or electroslag remelting (ESR) to dramatically reduce the size and population of non-metallic inclusions—is the primary means of addressing this source of variability at the very root. Furthermore, the degree of chemical segregation within the original cast steel billet or ingot must also be controlled. Macro-segregation, the non-uniform distribution of alloying elements such as carbon and manganese across the cross-section, can lead to localized regions of enriched carbide concentration. During subsequent heat treatment, these carbide-rich bands may respond differently, producing localized variations in hardness that will, in turn, cause non-uniform material removal behavior during the honing operation and a degradation of the geometric consistency of the finished bore.

Part 2: The Temperature Uniformity of the Heat Treatment Furnace

The quenching and tempering heat treatment process, which is the core operation that establishes the final mechanical properties of the tube, is critically sensitive to the uniformity of the temperature distribution within the furnace chamber during both the austenitizing and the tempering stages. If there exists a significant thermal gradient within the furnace—if some regions of the furnace are hotter or colder than the set-point temperature by a meaningful margin—then different sections of the same steel tube, or different tubes located in different positions within the same furnace charge, will experience different thermal histories. One end of a tube might be heated fully and uniformly into the austenite phase field and, upon quenching, transform completely to the desired hard martensitic structure. The other end, if it was positioned in a cooler zone of the furnace, may not have reached the required temperature and may retain patches of untransformed, soft proeutectoid ferrite in its microstructure. Such inter- and intra-tube microstructural non-uniformity will manifest directly as a regional fluctuation in hardness and strength, which will, during the subsequent honing operation, lead to an unacceptable dispersion in the final bore dimensions and geometric form as the abrasive stones cut harder and softer regions at different rates.

The implementation of fundamental furnace management disciplines is non-negotiable. This includes the installation of multi-point furnace temperature uniformity monitoring systems and the periodic performance of a standardized "nine-thermocouple survey," in which an array of calibrated thermocouples is placed throughout the working volume of the empty furnace to map the actual temperature distribution and to verify that it remains within the specified uniformity tolerance for the process.

Part 3: The Latent Presence of Residual Stresses and Their Gradual Relaxation

Residual internal stresses are an almost unavoidable byproduct of many manufacturing operations. The severe plastic deformation of cold drawing, the non-uniform cooling rates experienced during quenching, and the localized plastic strain imposed during mechanical straightening operations all introduce complex, three-dimensional fields of residual stress into the steel tube. These stresses remain locked within the material in a state of unstable mechanical equilibrium. Their insidious characteristic is that they may produce no immediately measurable dimensional effect. However, over a period of time—days, weeks, or even months—and under the subtle influence of ambient temperature fluctuations, the slight thermal activation provided by a modest change in temperature, or the disturbance to the equilibrium created by the removal of a layer of material during a subsequent machining operation, these trapped stresses will gradually and progressively relax and redistribute themselves. As they relax, they are accompanied by a corresponding, often micron-scale, physical distortion of the component. A tube that measured perfectly straight and round at final inspection may, after several months in storage, exhibit an increased ovality or a loss of straightness—a phenomenon known as dimensional drift.

This is the fundamental reason why, in the manufacturing protocol for the highest-grade, high-stability honed tubes, a dedicated stress-relief annealing operation is often interposed between the rough honing and the finish honing stages. The rough honing removes the bulk of the stock material, and the subsequent stress-relief cycle allows the inevitable stress redistribution to occur and to stabilize in a controlled, harmless manner. After the stress relief, and potentially after a further period of natural aging, the tube has reached a state of metallurgical and dimensional equilibrium, and only then does it proceed to the final, high-precision finish honing operation. Skipping this seemingly unproductive step may save processing time in the short term, but it introduces a significant latent risk of long-term geometric instability that can ultimately undermine the quality reputation of the product.

Part 4: The Influence of Ambient Temperature on the Accuracy of Dimensional Inspection

A detail that is frequently overlooked in the practical, day-to-day management of a manufacturing operation is the simple, inescapable physical reality that steel expands when heated and contracts when cooled. The coefficient of linear thermal expansion for carbon and low-alloy steels is approximately 11 × 10⁻⁶ per degree Celsius (11 microns per meter per degree Celsius). While this may seem like a small number, its effect on precision dimensional measurements can be startlingly significant. Consider a honed tube with a nominal internal diameter of 200 mm. A change in the ambient temperature of the workpiece of only 10 degrees Celsius will cause a change in the measured internal diameter of approximately 0.022 mm. This temperature-induced dimensional change alone represents nearly one-half of the total permissible tolerance band for an H8 tolerance grade on a 200 mm bore.

To obtain meaningfully accurate and repeatable dimensional measurements, and to ensure that a product declared to be within specification truly conforms, precision final inspection must be conducted within a temperature-controlled metrology laboratory, typically maintained at the internationally recognized standard reference temperature of 20°C ± 2°C. If the workshop environment where the parts are produced differs significantly from this controlled temperature, the freshly machined and still-warm parts must be brought into the metrology laboratory and allowed to soak and thermally equilibrate until their entire mass has stabilized at the reference temperature before any dimensional measurements are taken. Only by doing so can the measurement data be trusted to represent the true geometric dimensions of the part.

Part 5: Protection During Transportation and Storage — The Final Mile of Quality

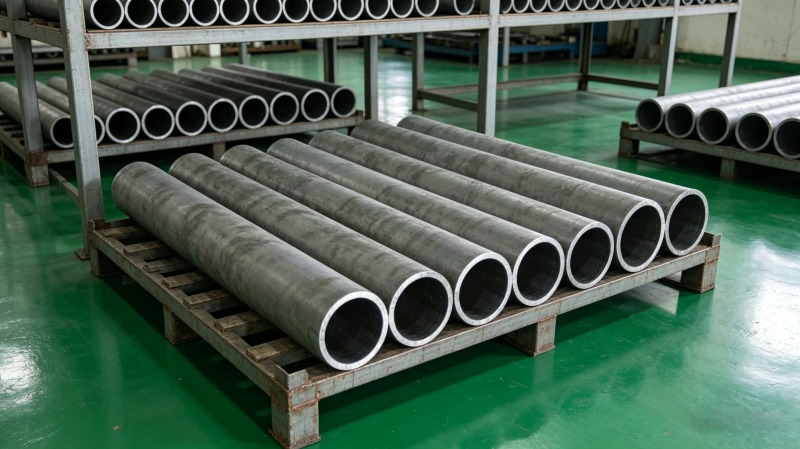

The sphere of rigorous quality control must extend beyond the boundary of the factory gate. The care with which the finished product is handled, transported, and stored is the final link in the quality chain, and it is a link that can be all too easily broken. If the tubes are inadequately secured during transit, allowing them to roll, shift, or collide with one another, or if they are subjected to rough, careless handling during loading and unloading operations, impact damage can occur. This can manifest as dented or deformed tube ends with damaged chamfers and sealing surfaces, or as subtle but functionally significant bending distortions. During storage, honed tubes should be placed in a horizontal position on racks that are fitted with soft, non-marring support cradles or padding material that will not damage the external surface finish. Both end openings of the tube must be kept securely sealed with the factory-installed plastic protective plugs or caps, preventing the ingress of atmospheric dust, particulate contamination, and humid air that could cause internal bore corrosion.

It is only by extending a comprehensive quality mindset and a set of rigorous protective practices across the entirety of the product's journey—from the incoming inspection of the raw steel billet, through every manufacturing transformation, and all the way to the safe delivery of the finished, protected product into the hands of the customer—that the full promise inherent in the phrase "precision, reliability, and durability" can be made a guaranteed reality for every honed seamless tube.
