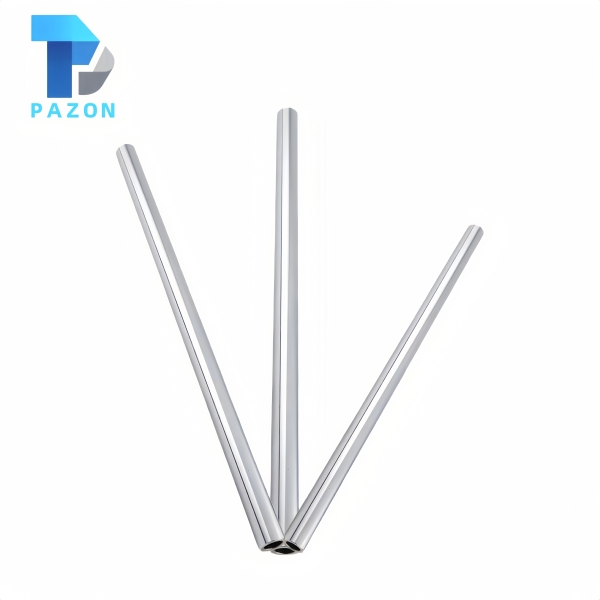

The Chrome Plated C50 Tube is a non-heat-treated hollow piston rod made from C50 high-carbon seamless steel tube, offering higher core strength and superior hardenability. Available in OD φ25–300 mm, up to 8000 mm long, it features ISO f7 tolerance, a hard chrome layer of 850–1150 HV, and 72-hour salt spray rating 9. Ideal for heavy-duty, lightweight or fluid-passage hydraulic cylinders, it supports full customization of dimensions, wall thickness, heat treatment and surface finishing.
PZPR0020
PAZON
The Chrome Plated C50 Tube is precision-ground and hard chrome plated from premium C50 medium carbon steel (1.0540 / 50#) seamless tube in a non-heat-treated condition. C50 steel features a higher carbon content than CK45, providing greater core strength and superior hardenability. As a hollow piston rod or cylinder barrel tube, it maintains high OD accuracy and surface performance while significantly reducing weight and enabling internal fluid passage. It is widely used in heavy-duty hydraulic equipment, construction machinery, mining machinery and hydraulic systems requiring higher tube strength with weight or flow optimization—an economical and practical solution balancing high load-bearing capacity with lightweight design.
Outer Diameter: Mainly φ25–300 mm, larger custom sizes accepted
Length: ≤8000 mm, custom lengths available
Straightness: ≤0.2 mm/M
Tolerance Grades: IT6–IT9
OD Tolerance: According to ISO f7/f8/g6/h7/h8/h9; customized tolerances available upon request
Ovality: Half of the tolerance value ISO f7
Heat Treatment: None; customization options include Quenched & Tempered, Induction Hardening, and QPQ
Core Hardness: ≤250 HB (approx. 200–250 HB)
Surface Treatment: Hard Chrome Plated; customization options: EN Plating / Zinc Plating / Laser Cladding / Nitriding / QPQ / Thermal Spraying / Ceramic Coating
Chrome Thickness: ≥10 μm, mainly 20–40 μm; can be over 100 μm for high-standard requirements
Chrome Layer Hardness: 850–1150 HV (Vickers 100 gf)
Surface Roughness: Ra≤0.2 μm, Rt≤2 μm
Cohesion: No cracks, breaking or detaching after thermal shock (warming up at 300 ℃ and cooling in water)
Porosity: Tested according to ISO 1456/1458, evaluation according to ISO 10289 rating 8–10. Under 10× magnification, no more than 30 micro white pin-holes per 1000 mm², with diameter not greater than approx. 0.1 mm
Corrosion Resistance: Tested in neutral salt spray according to ISO 9227/ASTM B117 – 72 hours, rating 9 per ISO 10289
Weldability: Fair (higher carbon content limits weldability; strict preheating, interpass temperature control and post-weld stress relieving are mandatory for any welding)
Packing: Anti-rust oil + cardboard tube/plastic sleeve + wooden case
Hollow structure effectively reduces weight, lowering equipment load and energy consumption, supporting lightweight design trends
Can serve as a hydraulic fluid passage, simplifying system design and saving space and piping costs
C50 high-carbon steel base offers higher core strength to meet mechanical requirements in medium-to-high-pressure applications
Strict f7 OD tolerance and low ovality ensure precise sealing and smooth operation
Hard chrome layer at 850–1150 HV delivers reliable wear and corrosion resistance
72-hour salt spray rating 9 meets corrosion protection requirements for typical industrial and outdoor environments
A non-heat-treated chrome plated tube combining high load capacity with lightweight design, delivering reliable performance and value
Full customization of wall thickness, internal bore, heat treatment and surface finishing to meet diverse OEM requirements
In addition to standard specifications, we offer:
Custom OD, ID and wall thickness
Custom lengths
Tolerance grades and non-standard OD tolerances
Higher straightness and internal bore precision requirements
Heat treatment options: Q&T, Induction Hardening, QPQ
Surface treatment alternatives: zinc plating, electroless nickel, laser cladding, nitriding, thermal spray, ceramic coating
Special chrome layer thickness
Enhanced corrosion resistance and dedicated packing solutions
Limits and Fits Table
The table below provides shaft deviation values for commonly used tolerance grades f7, f8, g6, h7, h8, and h9 to assist your selection according to seal fits.
Limits and Fits Table | ||||||||||||
Diameter | f7 | f8 | g6 | h7 | h8 | h9 | ||||||
es | ei | es | ei | es | ei | es | ei | es | ei | es | ei | |
>6-10 | -0.013 | -0.028 | -0.013 | -0.035 | -0.005 | -0.014 | 0 | -0.015 | 0 | -0.022 | 0 | -0.036 |
>10-18 | -0.016 | -0.034 | -0.016 | -0.043 | -0.006 | -0.017 | 0 | -0.018 | 0 | -0.027 | 0 | -0.043 |
>18-30 | -0.020 | -0.041 | -0.020 | -0.053 | -0.007 | -0.020 | 0 | -0.021 | 0 | -0.033 | 0 | -0.052 |
>30-50 | -0.025 | -0.050 | -0.025 | -0.064 | -0.009 | -0.025 | 0 | -0.025 | 0 | -0.039 | 0 | -0.062 |
>50-80 | -0.030 | -0.060 | -0.030 | -0.076 | -0.010 | -0.029 | 0 | -0.030 | 0 | -0.046 | 0 | -0.074 |
>80-120 | -0.036 | -0.071 | -0.036 | -0.090 | -0.012 | -0.034 | 0 | -0.035 | 0 | -0.054 | 0 | -0.087 |
>120-180 | -0.043 | -0.083 | -0.043 | -0.106 | -0.014 | -0.039 | 0 | -0.040 | 0 | -0.063 | 0 | -0.100 |
>180-250 | -0.050 | -0.096 | -0.050 | -0.122 | -0.015 | -0.044 | 0 | -0.046 | 0 | -0.072 | 0 | -0.115 |
>250-315 | -0.056 | -0.108 | -0.056 | -0.137 | -0.017 | -0.049 | 0 | -0.052 | 0 | -0.081 | 0 | -0.130 |
>315-400 | -0.062 | -0.119 | -0.062 | -0.151 | -0.018 | -0.054 | 0 | -0.057 | 0 | -0.089 | 0 | -0.140 |
>400-500 | -0.068 | -0.131 | -0.068 | -0.165 | -0.020 | -0.060 | 0 | -0.063 | 0 | -0.097 | 0 | -0.155 |
>500-630 | -0.076 | -0.146 | -0.076 | -0.186 | -0.022 | -0.066 | 0 | -0.070 | 0 | -0.110 | 0 | -0.175 |
>630-800 | -0.080 | -0.160 | -0.080 | -0.205 | -0.024 | -0.074 | 0 | -0.080 | 0 | -0.125 | 0 | -0.200 |
>800-1000 | -0.086 | -0.176 | -0.086 | -0.226 | -0.026 | -0.082 | 0 | -0.090 | 0 | -0.140 | 0 | -0.230 |
>1000-1250 | -0.098 | -0.203 | -0.098 | -0.263 | -0.028 | -0.094 | 0 | -0.105 | 0 | -0.165 | 0 | -0.260 |
>1250-1600 | -0.110 | -0.235 | -0.110 | -0.305 | -0.030 | -0.108 | 0 | -0.125 | 0 | -0.185 | 0 | -0.290 |
Chemical Composition
The table presents the standard chemical composition of frequently used materials such as CK45, 25Mn, 20#, ST52, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 for your reference.
Chemical Composition | ||||||||||
Material | C(%) | Si(%) | Mn(%) | P(%) | S(%) | V(%) | Ni(%) | Cr(%) | Mo(%) | Cu(%) |
CK45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
25Mn | 0.22-0.30 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
ST52 | ≤0.24 | ≤0.55 | ≤1.6 | ≤0.045 | ≤0.045 | 0.01-0.12 | ≤0.50 | ≤0.30 | ≤0.10 | ≤0.55 |
40Cr | 0.37-0.44 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | 0.80-1.10 | ≤0.30 | ||
42CrMo4 | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.07-0.12 | ≤0.03 | 0.90-1.20 | 0.15-0.25 | ≤0.030 |
20MnV6 | 0.17-0.24 | 0.17-0.37 | 1.30-1.60 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 | ≤0.30 | |
38MnVS6 | 0.34-0.41 | ≤0.80 | 1.20-1.60 | ≤0.025 | 0.02-0.06 | 0.08-0.20 | ≤0.30 | ≤0.08 | ≤0.30 | |
Mechanical Properties
The following table lists reference tensile strength, yield strength, elongation and impact energy values for CK45 (hot-rolled, cold-drawn, Q&T), 25Mn, 20#, ST52, Q345D, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 under various conditions.
Mechanical Properties | |||||
Material | T.S | Y.S | E% | CHARPY | CONDITION |
CK45 | 610 | 355 | 15 | ＞41J | Normalised |
CK45 | 630 | 540 | 15 | ＞41J | Cold Drawn |
CK45 | 800 | 630 | 20 | ＞41J | Q+T |
25Mn | 620 | 520 | 15 | Cold Drawn | |
20# | 520 | 400 | 15 | Cold Drawn | |
ST52 | 500 | 355 | 22 | Normalised | |
Q345D | 620 | 520 | 15 | ＞27(-20°C) | Cold Drawn |
40Cr | 1000 | 800 | 10 | Q+T | |
42CrMo4 | 980 | 850 | 14 | ＞47J | Q+T |
20MnV6 | 750 | 590 | 12 | ＞40J | Normalised |
38MnVS6 | 850 | 580 | 15 | Normalised | |
