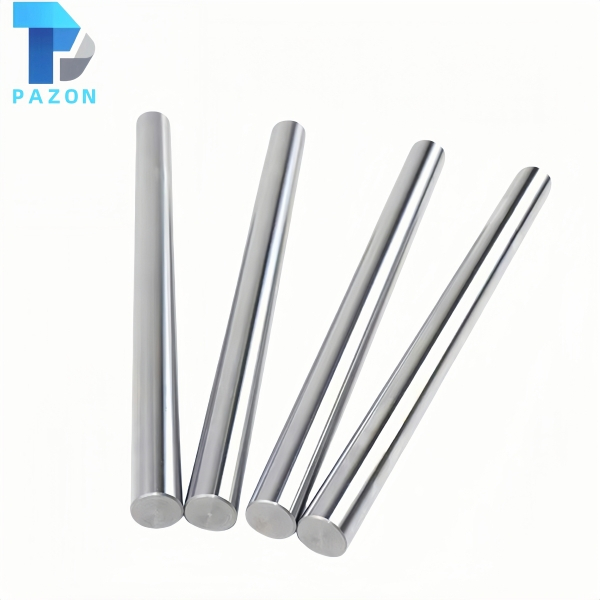

The Chrome Plated CK45 Rod is a cost-effective, non-heat-treated precision piston rod made from CK45 medium carbon steel. Available in diameters φ6–300 mm and lengths up to 8000 mm, it features tight straightness and f7/h7/h9 tolerance grades. The hard chrome layer (20–40 µm typical) reaches 850–1150 HV with excellent wear and corrosion resistance (96-hour salt spray rating 9). Ideal for standard hydraulic cylinders and general industrial applications, with full customization supported for dimensions, heat treatment, and surface finishing.
PZPR0001
PAZON
The Chrome Plated CK45 Rod is a precision hard chrome plated piston rod made from premium CK45 medium carbon steel (C45/1.0503) in non-heat-treated condition. It is ground and chrome plated directly from hot-rolled or cold-drawn base material without quenching/tempering. Widely used in medium/low-pressure hydraulic cylinders, construction machinery, injection molding machines, forklifts and general industrial equipment, it represents the most mature and cost-effective choice in the piston rod family. With strict dimensional accuracy and excellent chrome layer quality, it provides reliable guidance and sealing performance.
Diameter: Mainly φ6–300 mm, larger custom sizes accepted
Length: ≤8000 mm, custom lengths available
Straightness: ≤0.2 mm/M
Tolerance Grades: IT6–IT9
OD Tolerance: According to ISO f7/f8/g6/h7/h8/h9; customized tolerances available upon request
Ovality: Half of the tolerance value ISO f7
Heat Treatment: None; customization options include Quenched & Tempered, Induction Hardening, and QPQ
Hardness: Typical ≤229 HB (approx. 190–230 HB)
Surface Treatment: Hard Chrome Plated; customization options: EN Plating / Zinc Plating / Laser Cladding / Nitriding / QPQ / Thermal Spraying / Ceramic Coating
Chrome Thickness: ≥10 μm, mainly 20–40 μm; can be over 100 μm for high-standard requirements
Surface Hardness: 850–1150 HV (Vickers 100 gf)
Surface Roughness: Ra≤0.2 μm, Rt≤2 μm
Cohesion: No cracks, breaking or detaching after thermal shock (warming up at 300 ℃ and cooling in water)
Porosity: Tested according to ISO 1456/1458, evaluation according to ISO 10289 rating 8–10. Under 10× magnification, no more than 30 micro white pin-holes per 1000 mm², with diameter not greater than approx. 0.1 mm
Corrosion Resistance: Tested in neutral salt spray according to ISO 9227/ASTM B117 – 96 hours, rating 9 per ISO 10289
Weldability: Good (proper preheating and post-weld treatment are recommended)
Packing: Anti-rust oil + cardboard tube/plastic sleeve + wooden case
Economical non-heat-treated chrome plated rod with excellent cost performance under normal working conditions
Tight geometric tolerances – f7 precision and low ovality ensure reliable seal matching and extended service life
Chrome layer hardness of 850–1150 HV delivers superior wear and scratch resistance
96-hour salt spray test rated to class 9, providing dependable corrosion protection
Full customization support covering dimensions, tolerances, heat treatment and surface finishing to meet OEM requirements
In addition to standard specifications, we offer:
Custom diameters and lengths
Tolerance grades and non-standard OD tolerances
Higher straightness upon request
Additional heat treatments: Quenched & Tempered, Induction Hardening, QPQ, etc.
Surface treatment alternatives: zinc plating, electroless nickel, laser cladding, nitriding, thermal spray, ceramic coating
Special chrome layer thickness
Enhanced corrosion resistance and dedicated packing solutions
Limits and Fits Table
The table below provides shaft deviation values for commonly used tolerance grades f7, f8, g6, h7, h8, and h9 to assist your selection according to seal fits.
Limits and Fits Table | ||||||||||||
Diameter | f7 | f8 | g6 | h7 | h8 | h9 | ||||||
es | ei | es | ei | es | ei | es | ei | es | ei | es | ei | |
>6-10 | -0.013 | -0.028 | -0.013 | -0.035 | -0.005 | -0.014 | 0 | -0.015 | 0 | -0.022 | 0 | -0.036 |
>10-18 | -0.016 | -0.034 | -0.016 | -0.043 | -0.006 | -0.017 | 0 | -0.018 | 0 | -0.027 | 0 | -0.043 |
>18-30 | -0.020 | -0.041 | -0.020 | -0.053 | -0.007 | -0.020 | 0 | -0.021 | 0 | -0.033 | 0 | -0.052 |
>30-50 | -0.025 | -0.050 | -0.025 | -0.064 | -0.009 | -0.025 | 0 | -0.025 | 0 | -0.039 | 0 | -0.062 |
>50-80 | -0.030 | -0.060 | -0.030 | -0.076 | -0.010 | -0.029 | 0 | -0.030 | 0 | -0.046 | 0 | -0.074 |
>80-120 | -0.036 | -0.071 | -0.036 | -0.090 | -0.012 | -0.034 | 0 | -0.035 | 0 | -0.054 | 0 | -0.087 |
>120-180 | -0.043 | -0.083 | -0.043 | -0.106 | -0.014 | -0.039 | 0 | -0.040 | 0 | -0.063 | 0 | -0.100 |
>180-250 | -0.050 | -0.096 | -0.050 | -0.122 | -0.015 | -0.044 | 0 | -0.046 | 0 | -0.072 | 0 | -0.115 |
>250-315 | -0.056 | -0.108 | -0.056 | -0.137 | -0.017 | -0.049 | 0 | -0.052 | 0 | -0.081 | 0 | -0.130 |
>315-400 | -0.062 | -0.119 | -0.062 | -0.151 | -0.018 | -0.054 | 0 | -0.057 | 0 | -0.089 | 0 | -0.140 |
>400-500 | -0.068 | -0.131 | -0.068 | -0.165 | -0.020 | -0.060 | 0 | -0.063 | 0 | -0.097 | 0 | -0.155 |
>500-630 | -0.076 | -0.146 | -0.076 | -0.186 | -0.022 | -0.066 | 0 | -0.070 | 0 | -0.110 | 0 | -0.175 |
>630-800 | -0.080 | -0.160 | -0.080 | -0.205 | -0.024 | -0.074 | 0 | -0.080 | 0 | -0.125 | 0 | -0.200 |
>800-1000 | -0.086 | -0.176 | -0.086 | -0.226 | -0.026 | -0.082 | 0 | -0.090 | 0 | -0.140 | 0 | -0.230 |
>1000-1250 | -0.098 | -0.203 | -0.098 | -0.263 | -0.028 | -0.094 | 0 | -0.105 | 0 | -0.165 | 0 | -0.260 |
>1250-1600 | -0.110 | -0.235 | -0.110 | -0.305 | -0.030 | -0.108 | 0 | -0.125 | 0 | -0.185 | 0 | -0.290 |
Chemical Composition
The table presents the standard chemical composition of frequently used materials such as CK45, 25Mn, 20#, ST52, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 for your reference.
Chemical Composition | ||||||||||
Material | C(%) | Si(%) | Mn(%) | P(%) | S(%) | V(%) | Ni(%) | Cr(%) | Mo(%) | Cu(%) |
CK45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
25Mn | 0.22-0.30 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
ST52 | ≤0.24 | ≤0.55 | ≤1.6 | ≤0.045 | ≤0.045 | 0.01-0.12 | ≤0.50 | ≤0.30 | ≤0.10 | ≤0.55 |
40Cr | 0.37-0.44 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | 0.80-1.10 | ≤0.30 | ||
42CrMo4 | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.07-0.12 | ≤0.03 | 0.90-1.20 | 0.15-0.25 | ≤0.030 |
20MnV6 | 0.17-0.24 | 0.17-0.37 | 1.30-1.60 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 | ≤0.30 | |
38MnVS6 | 0.34-0.41 | ≤0.80 | 1.20-1.60 | ≤0.025 | 0.02-0.06 | 0.08-0.20 | ≤0.30 | ≤0.08 | ≤0.30 | |
Mechanical Properties
The following table lists reference tensile strength, yield strength, elongation and impact energy values for CK45 (hot-rolled, cold-drawn, Q&T), 25Mn, 20#, ST52, Q345D, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 under various conditions.
Mechanical Properties | |||||
Material | T.S | Y.S | E% | CHARPY | CONDITION |
CK45 | 610 | 355 | 15 | ＞41J | Normalised |
CK45 | 630 | 540 | 15 | ＞41J | Cold Drawn |
CK45 | 800 | 630 | 20 | ＞41J | Q+T |
25Mn | 620 | 520 | 15 | Cold Drawn | |
20# | 520 | 400 | 15 | Cold Drawn | |
ST52 | 500 | 355 | 22 | Normalised | |
Q345D | 620 | 520 | 15 | ＞27(-20°C) | Cold Drawn |
40Cr | 1000 | 800 | 10 | Q+T | |
42CrMo4 | 980 | 850 | 14 | ＞47J | Q+T |
20MnV6 | 750 | 590 | 12 | ＞40J | Normalised |
38MnVS6 | 850 | 580 | 15 | Normalised | |
