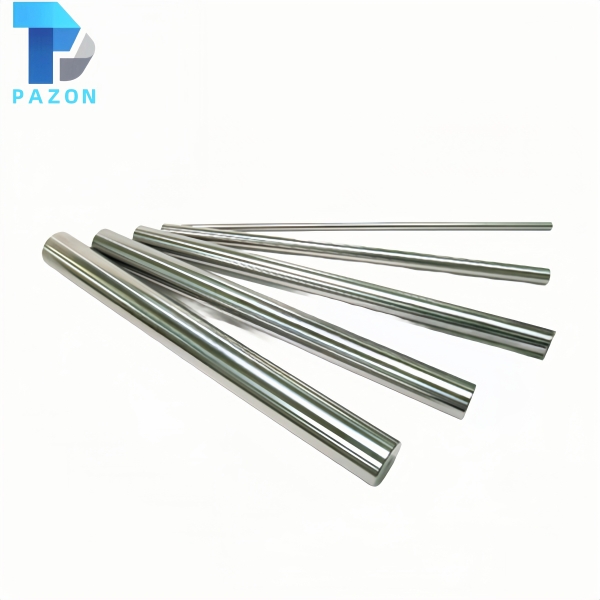

The Nitrocarburized 38MnVS6 Rod features a QPQ-treated surface (diffusion zone 0.30–0.40 mm, white layer ≥25 µm) achieving ≥600 HV hardness without chrome plating. Available in φ6–300 mm, up to 8000 mm long, it meets ISO f7 tolerance and 200-hour salt spray rating 9. Built on high-strength 38MnVS6 micro-alloyed steel, this chrome-free rod provides excellent wear and corrosion resistance for heavy-duty hydraulic cylinders. Full customization supported.
PZPR0042
PAZON
The Nitrocarburized 38MnVS6 Rod (38MnVS6 QPQ Rod) is precision-machined from premium 38MnVS6 micro-alloyed steel in a non-heat-treated condition (core hardness ≤290 HB) and treated with an advanced QPQ (Quench-Polish-Quench) nitrocarburizing process—consisting of nitriding, oxidation, polishing, and re-oxidation. This generates a dense white layer and a supportive diffusion zone without relying on chrome plating. Thanks to vanadium micro-alloying, 38MnVS6 possesses a fine grain structure and elevated base strength even in the as-rolled condition, along with good nitriding response. This chrome-free, environmentally friendly rod is ideally suited for heavy-duty hydraulic cylinders, construction machinery, agricultural equipment and commercial vehicle components requiring high corrosion and wear resistance, fatigue strength, and environmental compliance.
Diameter: Mainly φ6–300 mm, larger custom sizes accepted
Length: ≤8000 mm, custom lengths available
Straightness: ≤0.2 mm/M
Tolerance Grades: IT6–IT9
OD Tolerance: According to ISO f7/f8/g6/h7/h8/h9; customized tolerances available upon request
Ovality: Half of the tolerance value ISO f7
Core Condition & Hardness: Non-heat-treated (as-rolled/cold-drawn), core hardness ≤290 HB
Surface Modification Treatment: QPQ nitrocarburizing (Nitriding + Oxidation + Polishing + Re-oxidation)
Diffusion Layer Depth: 0.30–0.40 mm
White Layer (Compound Layer) Thickness: ≥25 μm
Surface Hardness: ≥600 HV (typical on white layer; vanadium micro-alloying promotes uniform high hardness)
Surface Roughness: Ra≤0.2 μm, Rt≤2 μm (after polishing)
Corrosion Resistance: Tested in neutral salt spray per ISO 9227/ASTM B117 – 200 hours, rating 9 per ISO 10289
Weldability: Fair (moderate carbon equivalent; micro-alloying helps control HAZ grain growth; the QPQ layer must be mechanically removed from the weld zone prior to welding, with proper preheating and post-weld stress relief; welding on load-bearing areas should be avoided)
Packing: Anti-rust oil + cardboard tube/plastic sleeve + wooden case
Eco-friendly & chrome-free: QPQ process contains no hexavalent chromium, meeting RoHS and environmental directives
High surface hardness and wear resistance: white layer exceeds 600 HV; vanadium micro-alloying ensures uniform high hardness and excellent wear properties
Superior corrosion resistance: 200-hour salt spray rating 9, providing protection equal to hard chrome in salt spray, humid and chemically aggressive environments
Excellent base strength: 38MnVS6 micro-alloyed steel achieves up to 290 HB in non-treated condition, significantly higher than plain carbon steels
Outstanding dimensional stability: low processing temperature ensures minimal distortion, ideal for precision rods without extra straightening
No delamination risk: the diffusion and compound layers are metallurgically bonded, eliminating the peeling failure mode of chrome plating
Low friction coefficient: QPQ surface has self-lubricating properties, reducing seal wear and improving cylinder efficiency
Good machinability: 38MnVS6 offers excellent cutting performance for controlled manufacturing costs
Fully customizable: wide choice of dimensions, tolerances, core conditions and alternative surface treatments
In addition to the standard QPQ finish, we offer:
Custom diameters and lengths, including extra-long or oversized rods
Tolerance grades and non-standard OD tolerances
Higher straightness upon request
Quenched & Tempered core for further improved overall strength and fatigue life
Alternative surface treatments: hard chrome plating, electroless nickel, zinc plating, laser cladding, thermal spray, ceramic coating
Special case depth requirements or selective nitriding protection
Enhanced corrosion resistance and dedicated packing solutions
Limits and Fits Table
The table below provides shaft deviation values for commonly used tolerance grades f7, f8, g6, h7, h8, and h9 to assist your selection according to seal fits.
Limits and Fits Table | ||||||||||||
Diameter | f7 | f8 | g6 | h7 | h8 | h9 | ||||||
es | ei | es | ei | es | ei | es | ei | es | ei | es | ei | |
>6-10 | -0.013 | -0.028 | -0.013 | -0.035 | -0.005 | -0.014 | 0 | -0.015 | 0 | -0.022 | 0 | -0.036 |
>10-18 | -0.016 | -0.034 | -0.016 | -0.043 | -0.006 | -0.017 | 0 | -0.018 | 0 | -0.027 | 0 | -0.043 |
>18-30 | -0.020 | -0.041 | -0.020 | -0.053 | -0.007 | -0.020 | 0 | -0.021 | 0 | -0.033 | 0 | -0.052 |
>30-50 | -0.025 | -0.050 | -0.025 | -0.064 | -0.009 | -0.025 | 0 | -0.025 | 0 | -0.039 | 0 | -0.062 |
>50-80 | -0.030 | -0.060 | -0.030 | -0.076 | -0.010 | -0.029 | 0 | -0.030 | 0 | -0.046 | 0 | -0.074 |
>80-120 | -0.036 | -0.071 | -0.036 | -0.090 | -0.012 | -0.034 | 0 | -0.035 | 0 | -0.054 | 0 | -0.087 |
>120-180 | -0.043 | -0.083 | -0.043 | -0.106 | -0.014 | -0.039 | 0 | -0.040 | 0 | -0.063 | 0 | -0.100 |
>180-250 | -0.050 | -0.096 | -0.050 | -0.122 | -0.015 | -0.044 | 0 | -0.046 | 0 | -0.072 | 0 | -0.115 |
>250-315 | -0.056 | -0.108 | -0.056 | -0.137 | -0.017 | -0.049 | 0 | -0.052 | 0 | -0.081 | 0 | -0.130 |
>315-400 | -0.062 | -0.119 | -0.062 | -0.151 | -0.018 | -0.054 | 0 | -0.057 | 0 | -0.089 | 0 | -0.140 |
>400-500 | -0.068 | -0.131 | -0.068 | -0.165 | -0.020 | -0.060 | 0 | -0.063 | 0 | -0.097 | 0 | -0.155 |
>500-630 | -0.076 | -0.146 | -0.076 | -0.186 | -0.022 | -0.066 | 0 | -0.070 | 0 | -0.110 | 0 | -0.175 |
>630-800 | -0.080 | -0.160 | -0.080 | -0.205 | -0.024 | -0.074 | 0 | -0.080 | 0 | -0.125 | 0 | -0.200 |
>800-1000 | -0.086 | -0.176 | -0.086 | -0.226 | -0.026 | -0.082 | 0 | -0.090 | 0 | -0.140 | 0 | -0.230 |
>1000-1250 | -0.098 | -0.203 | -0.098 | -0.263 | -0.028 | -0.094 | 0 | -0.105 | 0 | -0.165 | 0 | -0.260 |
>1250-1600 | -0.110 | -0.235 | -0.110 | -0.305 | -0.030 | -0.108 | 0 | -0.125 | 0 | -0.185 | 0 | -0.290 |
Chemical Composition
The table presents the standard chemical composition of frequently used materials such as CK45, 25Mn, 20#, ST52, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 for your reference.
Chemical Composition | ||||||||||
Material | C(%) | Si(%) | Mn(%) | P(%) | S(%) | V(%) | Ni(%) | Cr(%) | Mo(%) | Cu(%) |
CK45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
25Mn | 0.22-0.30 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
ST52 | ≤0.24 | ≤0.55 | ≤1.6 | ≤0.045 | ≤0.045 | 0.01-0.12 | ≤0.50 | ≤0.30 | ≤0.10 | ≤0.55 |
40Cr | 0.37-0.44 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | 0.80-1.10 | ≤0.30 | ||
42CrMo4 | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.07-0.12 | ≤0.03 | 0.90-1.20 | 0.15-0.25 | ≤0.030 |
20MnV6 | 0.17-0.24 | 0.17-0.37 | 1.30-1.60 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 | ≤0.30 | |
38MnVS6 | 0.34-0.41 | ≤0.80 | 1.20-1.60 | ≤0.025 | 0.02-0.06 | 0.08-0.20 | ≤0.30 | ≤0.08 | ≤0.30 | |
Mechanical Properties
The following table lists reference tensile strength, yield strength, elongation and impact energy values for CK45 (hot-rolled, cold-drawn, Q&T), 25Mn, 20#, ST52, Q345D, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 under various conditions.
Mechanical Properties | |||||
Material | T.S | Y.S | E% | CHARPY | CONDITION |
CK45 | 610 | 355 | 15 | ＞41J | Normalised |
CK45 | 630 | 540 | 15 | ＞41J | Cold Drawn |
CK45 | 800 | 630 | 20 | ＞41J | Q+T |
25Mn | 620 | 520 | 15 | Cold Drawn | |
20# | 520 | 400 | 15 | Cold Drawn | |
ST52 | 500 | 355 | 22 | Normalised | |
Q345D | 620 | 520 | 15 | ＞27(-20°C) | Cold Drawn |
40Cr | 1000 | 800 | 10 | Q+T | |
42CrMo4 | 980 | 850 | 14 | ＞47J | Q+T |
20MnV6 | 750 | 590 | 12 | ＞40J | Normalised |
38MnVS6 | 850 | 580 | 15 | Normalised | |
