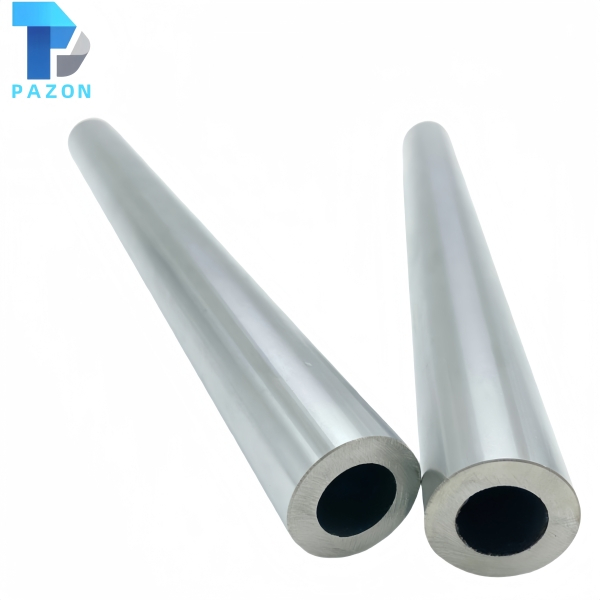

The Chrome Plated ST52 Tube is a non-heat-treated hollow piston rod made from ST52 seamless steel tube, known for excellent weldability and balanced mechanical properties. Available in OD φ25–300 mm, up to 8000 mm long, it features ISO f7 tolerance, a hard chrome layer of 850–1150 HV, and 200-hour salt spray rating 9. Ideal for lightweight, fluid-passage or welded hydraulic cylinders, it offers full customization of dimensions, wall thickness, heat treatment and surface finishing.
PZPR0010
PAZON
The Chrome Plated ST52 Tube is precision-ground and hard chrome plated from premium ST52 (DIN 1.0580 / S355) carbon-manganese seamless steel tube in a non-heat-treated condition. ST52 is renowned for its excellent weldability and well-balanced strength and toughness. Designed as a hollow piston rod or cylinder barrel tube, it maintains high outer diameter accuracy and surface performance while significantly reducing weight and enabling internal oil flow. It is widely used in construction machinery, injection molding machines, lightweight hydraulic equipment, agricultural machinery and cylinder systems requiring welded connections with weight or fluid passage optimization—a reliable solution for structural optimization and cost efficiency.
Outer Diameter: Mainly φ25–300 mm, larger custom sizes accepted
Length: ≤8000 mm, custom lengths available
Straightness: ≤0.2 mm/M
Tolerance Grades: IT6–IT9
OD Tolerance: According to ISO f7/f8/g6/h7/h8/h9; customized tolerances available upon request
Ovality: Half of the tolerance value ISO f7
Heat Treatment: None; customization options include Quenched & Tempered, Induction Hardening, and QPQ
Core Hardness: ≤210 HB (approx. 170–210 HB)
Surface Treatment: Hard Chrome Plated; customization options: EN Plating / Zinc Plating / Laser Cladding / Nitriding / QPQ / Thermal Spraying / Ceramic Coating
Chrome Thickness: ≥10 μm, mainly 20–40 μm; can be over 100 μm for high-standard requirements
Chrome Layer Hardness: 850–1150 HV (Vickers 100 gf)
Surface Roughness: Ra≤0.2 μm, Rt≤2 μm
Cohesion: No cracks, breaking or detaching after thermal shock (warming up at 300 ℃ and cooling in water)
Porosity: Tested according to ISO 1456/1458, evaluation according to ISO 10289 rating 8–10. Under 10× magnification, no more than 30 micro white pin-holes per 1000 mm², with diameter not greater than approx. 0.1 mm
Corrosion Resistance: Tested in neutral salt spray according to ISO 9227/ASTM B117 – 96 hours, rating 9 per ISO 10289
Weldability: Excellent (ST52 has a low carbon equivalent and outstanding weldability; proper preheating and post-weld stress relieving are recommended)
Packing: Anti-rust oil + cardboard tube/plastic sleeve + wooden case
Hollow structure effectively reduces weight, lowering equipment load and energy consumption, supporting lightweight design trends
Can serve as a hydraulic fluid passage, simplifying system design and saving space and piping costs
ST52 base material provides excellent weldability, ideal for hydraulic structural components requiring welding
Strict f7 OD tolerance and low ovality ensure precise sealing and smooth operation
Hard chrome layer at 850–1150 HV delivers reliable wear and corrosion resistance
96-hour salt spray rating 9 meets corrosion protection requirements for typical industrial and outdoor environments
A cost-effective, non-heat-treated chrome plated tube delivering high performance and value for standard medium/low-pressure applications
Full customization of wall thickness, internal bore, heat treatment and surface finishing to meet diverse OEM requirements
In addition to standard specifications, we offer:
Custom OD, ID and wall thickness
Custom lengths
Tolerance grades and non-standard OD tolerances
Higher straightness and internal bore precision requirements
Heat treatment options: Q&T, Induction Hardening, QPQ
Surface treatment alternatives: zinc plating, electroless nickel, laser cladding, nitriding, thermal spray, ceramic coating
Special chrome layer thickness
Enhanced corrosion resistance and dedicated packing solutions
Limits and Fits Table
The table below provides shaft deviation values for commonly used tolerance grades f7, f8, g6, h7, h8, and h9 to assist your selection according to seal fits.
Limits and Fits Table | ||||||||||||
Diameter | f7 | f8 | g6 | h7 | h8 | h9 | ||||||
es | ei | es | ei | es | ei | es | ei | es | ei | es | ei | |
>6-10 | -0.013 | -0.028 | -0.013 | -0.035 | -0.005 | -0.014 | 0 | -0.015 | 0 | -0.022 | 0 | -0.036 |
>10-18 | -0.016 | -0.034 | -0.016 | -0.043 | -0.006 | -0.017 | 0 | -0.018 | 0 | -0.027 | 0 | -0.043 |
>18-30 | -0.020 | -0.041 | -0.020 | -0.053 | -0.007 | -0.020 | 0 | -0.021 | 0 | -0.033 | 0 | -0.052 |
>30-50 | -0.025 | -0.050 | -0.025 | -0.064 | -0.009 | -0.025 | 0 | -0.025 | 0 | -0.039 | 0 | -0.062 |
>50-80 | -0.030 | -0.060 | -0.030 | -0.076 | -0.010 | -0.029 | 0 | -0.030 | 0 | -0.046 | 0 | -0.074 |
>80-120 | -0.036 | -0.071 | -0.036 | -0.090 | -0.012 | -0.034 | 0 | -0.035 | 0 | -0.054 | 0 | -0.087 |
>120-180 | -0.043 | -0.083 | -0.043 | -0.106 | -0.014 | -0.039 | 0 | -0.040 | 0 | -0.063 | 0 | -0.100 |
>180-250 | -0.050 | -0.096 | -0.050 | -0.122 | -0.015 | -0.044 | 0 | -0.046 | 0 | -0.072 | 0 | -0.115 |
>250-315 | -0.056 | -0.108 | -0.056 | -0.137 | -0.017 | -0.049 | 0 | -0.052 | 0 | -0.081 | 0 | -0.130 |
>315-400 | -0.062 | -0.119 | -0.062 | -0.151 | -0.018 | -0.054 | 0 | -0.057 | 0 | -0.089 | 0 | -0.140 |
>400-500 | -0.068 | -0.131 | -0.068 | -0.165 | -0.020 | -0.060 | 0 | -0.063 | 0 | -0.097 | 0 | -0.155 |
>500-630 | -0.076 | -0.146 | -0.076 | -0.186 | -0.022 | -0.066 | 0 | -0.070 | 0 | -0.110 | 0 | -0.175 |
>630-800 | -0.080 | -0.160 | -0.080 | -0.205 | -0.024 | -0.074 | 0 | -0.080 | 0 | -0.125 | 0 | -0.200 |
>800-1000 | -0.086 | -0.176 | -0.086 | -0.226 | -0.026 | -0.082 | 0 | -0.090 | 0 | -0.140 | 0 | -0.230 |
>1000-1250 | -0.098 | -0.203 | -0.098 | -0.263 | -0.028 | -0.094 | 0 | -0.105 | 0 | -0.165 | 0 | -0.260 |
>1250-1600 | -0.110 | -0.235 | -0.110 | -0.305 | -0.030 | -0.108 | 0 | -0.125 | 0 | -0.185 | 0 | -0.290 |
Chemical Composition
The table presents the standard chemical composition of frequently used materials such as CK45, 25Mn, 20#, ST52, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 for your reference.
Chemical Composition | ||||||||||
Material | C(%) | Si(%) | Mn(%) | P(%) | S(%) | V(%) | Ni(%) | Cr(%) | Mo(%) | Cu(%) |
CK45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
25Mn | 0.22-0.30 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 | ≤0.25 | ||
ST52 | ≤0.24 | ≤0.55 | ≤1.6 | ≤0.045 | ≤0.045 | 0.01-0.12 | ≤0.50 | ≤0.30 | ≤0.10 | ≤0.55 |
40Cr | 0.37-0.44 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.30 | 0.80-1.10 | ≤0.30 | ||
42CrMo4 | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.07-0.12 | ≤0.03 | 0.90-1.20 | 0.15-0.25 | ≤0.030 |
20MnV6 | 0.17-0.24 | 0.17-0.37 | 1.30-1.60 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 | ≤0.30 | |
38MnVS6 | 0.34-0.41 | ≤0.80 | 1.20-1.60 | ≤0.025 | 0.02-0.06 | 0.08-0.20 | ≤0.30 | ≤0.08 | ≤0.30 | |
Mechanical Properties
The following table lists reference tensile strength, yield strength, elongation and impact energy values for CK45 (hot-rolled, cold-drawn, Q&T), 25Mn, 20#, ST52, Q345D, 40Cr, 42CrMo4, 20MnV6 and 38MnVS6 under various conditions.
Mechanical Properties | |||||
Material | T.S | Y.S | E% | CHARPY | CONDITION |
CK45 | 610 | 355 | 15 | ＞41J | Normalised |
CK45 | 630 | 540 | 15 | ＞41J | Cold Drawn |
CK45 | 800 | 630 | 20 | ＞41J | Q+T |
25Mn | 620 | 520 | 15 | Cold Drawn | |
20# | 520 | 400 | 15 | Cold Drawn | |
ST52 | 500 | 355 | 22 | Normalised | |
Q345D | 620 | 520 | 15 | ＞27(-20°C) | Cold Drawn |
40Cr | 1000 | 800 | 10 | Q+T | |
42CrMo4 | 980 | 850 | 14 | ＞47J | Q+T |
20MnV6 | 750 | 590 | 12 | ＞40J | Normalised |
38MnVS6 | 850 | 580 | 15 | Normalised | |
